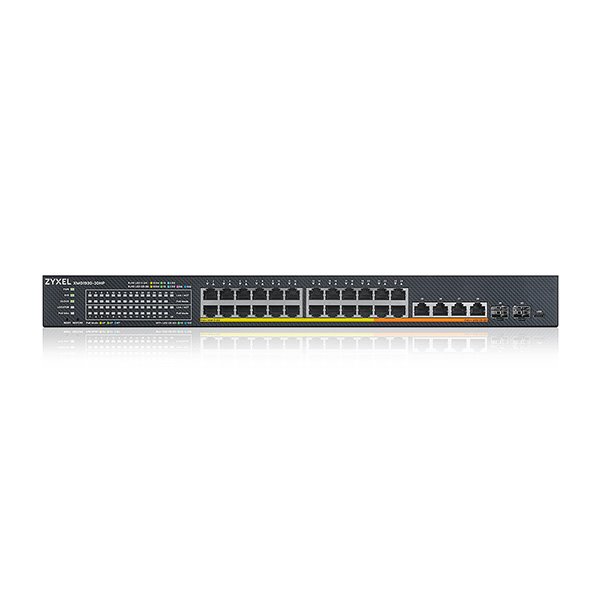

Zyxel XMG1930-30HP, 24-port 2.5GbE Smart Managed Layer 2 PoE 700W 22xPoE+/8xPoE++ Switch with 4 10GbE and 2 SFP+ Uplink

Description

Product name



24-Port 2.5G Multi-Gig Lite-L3 Smart Managed PoE++/PoE+ Switch with 6 10G Uplink



Port Density

Total port count



30



100M/1G/2.5G Ethernet (RJ-45)



24



1G/2.5G/5G/10G Ethernet (RJ-45)



4



1G SFP/10G SFP+



2



PoE

PoE ports



28



Total PoE budget (Watts)



700



IEEE 802.3at (PoE+)



Port 1 - 20



IEEE 802.3bt (PoE++, 60 W)



100M/1G/2.5G: Port 21 - 24



1G/2.5G/5G/10G: Port 25 - 28



Performance

Switching capacity (Gbps)



240



Forwarding rate (Mpps)



178.5



Packet buffer (byte)



2 MB



MAC address table



16 K



Jumbo frame (byte)



12 K



L3 forwarding table (Max. IPv4/Max. IPv6)



512/512



Routing table



32



IP interface



32/32



Flash/RAM



32 MB/256 MB



Power

Input



100 - 240 V AC, 50/60 Hz



Max. power consumption (watt)



864.1



Physical Specifications

Dimensions

(WxDxH)(mm/in.)



441 x 330 x 44/17.36 x 12.99 x 1.73



Weight

(kg/lb.)



4.85/10.69



Included accessories



Power cord



Power adapter



Rack mounting kit



ESD/Surge Protections
