Ubiquiti UniFi switch USW-WAN switch 3x 10G SFP+ pro UniFi Gateways

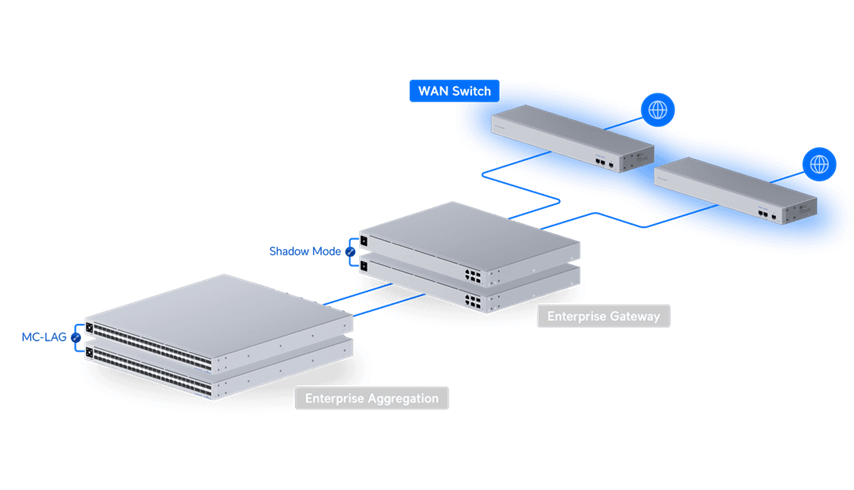

10G SFP+ WAN Switch pro zapojení dvou routerů se službou Shadow Mode High Availability UniFi Gateways do infrastruktury jednoho poskytovatele připojení = ISP.

Overview

Dimensions  442.4 x 120 x 43.7 mm

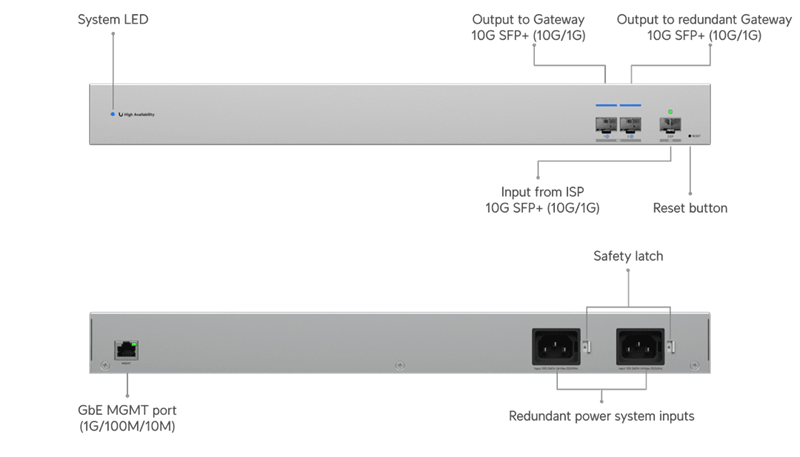

Port Layout  1 GbE RJ45  1 (1G/100M/10M)

10G SFP+  3 (10G/1G)

Redundancy   (2) AC inputs

Form Factor   Rack mount (1U)



Performance

Switching Capacity   20 Gbps

Total Non-Blocking Throughput   10 Gbps

Forwarding Rate   15 Mpps



Hardware

Max. Power Consumption   13W

Power Method   (2) Universal input, 100—240V AC, 50/60 Hz

Power Input Method   AC input

Power Supply   (2) AC/DC, internal, 36W

Supported Voltage Range   100—240V AC

Management   Ethernet

Weight   Without mounting brackets: 2.2 kg (4.85 lb)    With mounting brackets: 2.3 kg (5.1 lb)

Enclosure Material   SGCC steel

Mount Material   SGCC steel

ESD/EMP Protection   Air: ± 16kV, contact: ± 22kV

Ambient Operating Temperature   -5 to 40° C (23 to 104° F)

Ambient Operating Humidity    10 to 90% noncondensing

LEDs

Ethernet   Yes

SFP+   Yes

System   Yes

Certifications   CE, FCC, IC

NDAA Compliant   Yes



Software

Application Requirements

UniFi Network   Version 9.1.119 and later
