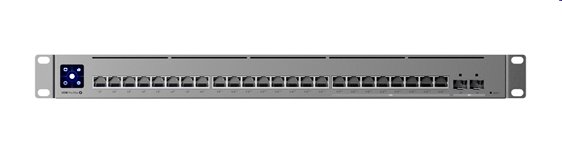

Ubiquiti UniFi switch Gen2 USW-PRO-MAX-24-POE Layer3 16x 1Gbps 8x 2,5Gbps + 2x SFP+ POE++ (400W)

Technical Specifications



Mechanical

Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

Weight Without mounting brackets: 5.1 kg (11.3 lb)

With mounting brackets: 5.2 kg (11.5 lb)

Enclosure material SGCC steel



Hardware

Management interface Ethernet In-Band

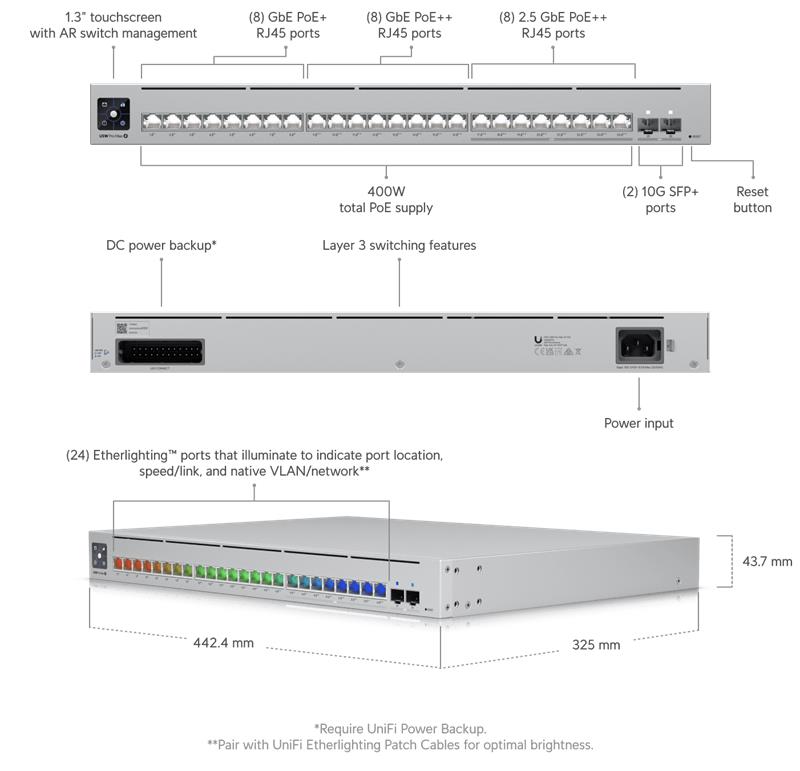

Networking interface (16) GbE RJ45 ports

(8) 1/2.5 GbE RJ45 ports

(2) 10G SFP+ ports

PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput 56 Gbps

Switching capacity 112 Gbps

Power method (1) Universal input, 100—240V AC, 50/60 Hz

(1) USP-RPS DC input

Power supply AC/DC, internal, 450W

Supported voltage range 100—240V AC

Max. power consumption 50W (Excluding PoE output)

Total available PoE 400W

Max. PoE wattage per port by PSE  PoE: 15.4W

PoE+: 30W

PoE++: 60W

Voltage range PoE mode  PoE: 44—57V

PoE+: 50—57V

LCM display  (1) 1.3" touchscreen

Button Factory reset

Ambient operating temperature -5 to 40° C (23 to 104° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC



Switching Features

Layer 2 features

IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

Layer 3 features

DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

Network isolation with ACLs

Etherlighting™

Ethernet  Locating

Speed/link

Native VLAN/network

SFP+ Locating

Speed/link

Native VLAN/network



LEDs

System Status

RPS Status



Application Requirements

UniFi Network  Version 8.0.24 and later
