Gigabyte Intel Dual Thunderbolt 4 / DisplayPort 1.4 card (40 Gb/s, PD3.0 up to 97W)

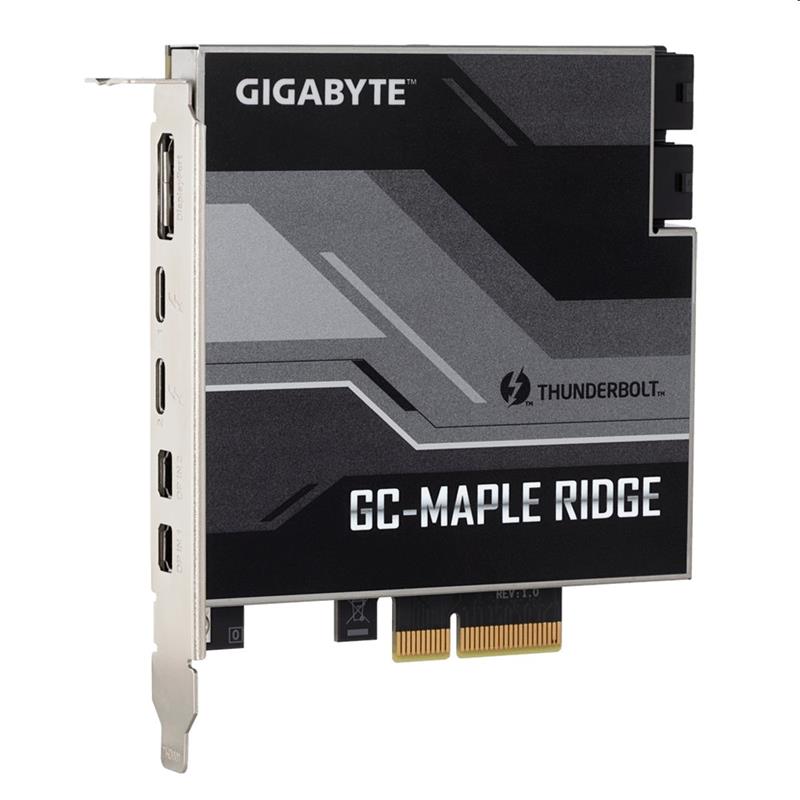

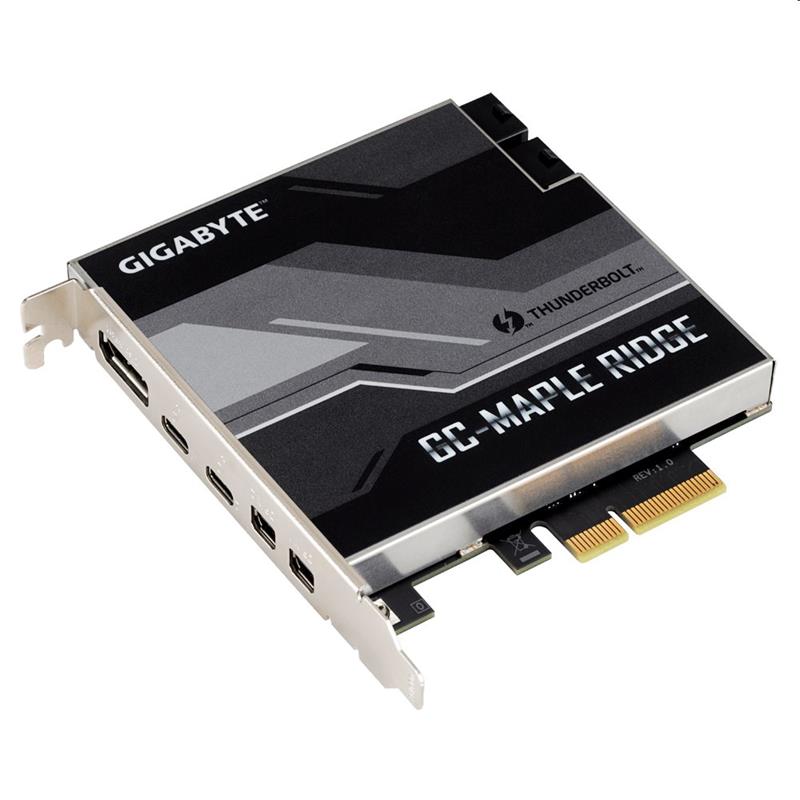

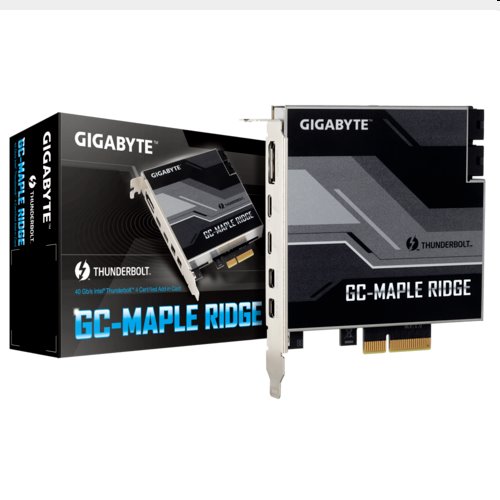

40 Gb/s Intel® Thunderbolt™ 4 Certified Add-in Card

The GC-MAPLE RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 4 connectivity without having to upgrade to a whole new system.

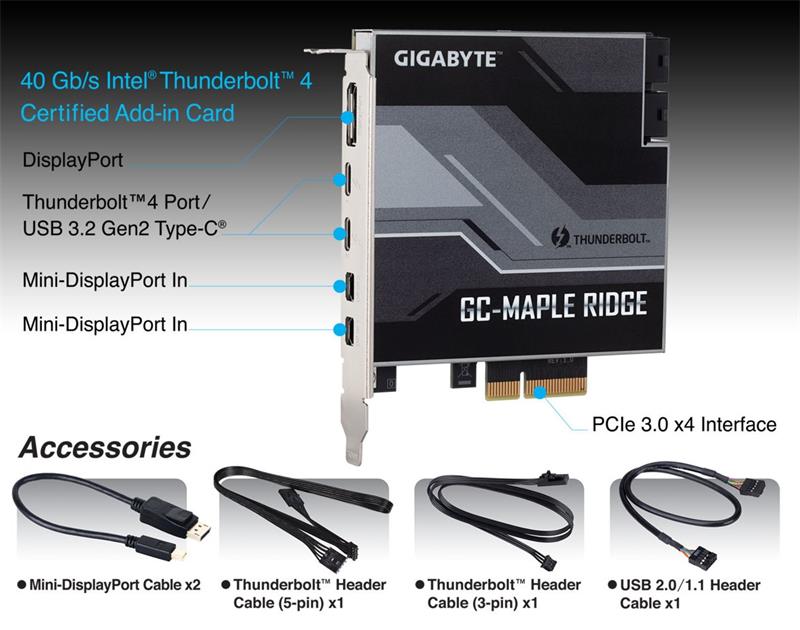

Intel® Thunderbolt™ 4 Certified add-in card
Intel® JHL8540 Thunderbolt™ 4 controller
Dual Thunderbolt™ 4 Ports (USB Type-C™)
Max Bandwidth 40 Gb/s
DisplayPort 1.4 Capable with 8K Video Throughout
Daisy-chain up to 10 Devices (5 devices per port)
Support PD3.0 standard (up to 97W)

Port 1 : Support 5V/3A 9V/3A 15V/3A 19V/5A Power Delivery Spec
Port 2 : Support 5V/3A 9V/3A Power Delivery Spec

* GC-MAPLE RIDGE add-in card availability may vary based on local distribution.

Certified Motherboards with GC-MAPLE RIDGE
The GC-MAPLE RIDGE is compatible with GIGABYTE motherboards that featured a Thunderbolt™ header, refer the list as below.
* Supported status may vary depending on motherboard specifications.
* Support for Windows 10 64-bit with 20H2 or later.

Series Model
Z790 series
(Support by PCH PCIe x4 slot only)

Z790 AORUS TACHYON X


Z790 AORUS MASTER X


Z790 AORUS PRO X


Z790 AORUS PRO X WIFI7

Z790 AORUS ELITE X WIFI7


Z790 AORUS ELITE X AX


Z790 AORUS ELITE X


B760M AORUS ELITE X AX

Z790 AORUS TACHYON


Z790 AORUS MASTER


Z790 AORUS ELITE AX


Z790 AORUS ELITE

Z790 AORUS ELITE AX DDR4


Z790 AORUS ELITE DDR4


Z790M AORUS ELITE AX


Z790M AORUS ELITE

Z790 AERO G


Z790 GAMING X AX


Z790 GAMING X


Z790 UD AX

Z790 UD AC


Z790 UD


Z790 D DDR4



B760 series
(Support by PCH PCIe x4 slot only)

B760 AORUS MASTER DDR4


B760M AORUS PRO AX


B760M AORUS PRO


B760M AORUS PRO AX DDR4

B760M AORUS PRO DDR4


B760M AORUS ELITE AX


B760M AORUS ELITE AX-P


B760M AORUS ELITE

B760M AORUS ELITE AX DDR4


B760M AORUS ELITE DDR4


B760M GAMING X AX


B760M GAMING X

B760M GAMING X AX DDR4


B760M GAMING X DDR4


B760M D3H DDR4


B760M D3H

B760M C









Z690 series
(Support by PCH PCIe x4 slot only)

Z690 AORUS TACHYON


Z690 AORUS MASTER


Z690 AORUS ULTRA


Z690 AORUS PRO

Z690 AORUS PRO DDR4


Z690 AORUS ELITE AX


Z690 AORUS ELITE


Z690 A ELITE AX DDR4

Z690 AORUS ELITE DDR4


Z690M AORUS ELITE AX DDR4


Z690M AORUS ELITE DDR4


Z690 AERO G

Z690 AERO G DDR4


Z690 GAMING X


Z690 GAMING X DDR4


Z690 UD AX

Z690 UD AC


Z690 UD AX DDR4


Z690 UD


Z690 UD DDR4

B660 AORUS MASTER


B660 AORUS MASTER DDR4


B660 DS3H AC


B660M AORUS PRO AX

B660M AORUS PRO AX DDR4


B660M AORUS PRO


B660M AORUS PRO DDR4


B660M AORUS ELITE AX DDR4

B660M AORUS ELITE DDR4


B660M GAMING X AX


B660M GAMING X AX DDR4


B660M GAMING X

B660M GAMING X DDR4


B660M D3H DDR4

Z590 / B560 series
(Support by PCH PCIe x4 slot only)

Z590 AORUS TACHYON


Z590 AORUS MASTER


Z590 AORUS ULTRA


Z590 AORUS PRO AX

Z590 AORUS ELITE AX


Z590 AORUS ELITE


Z590 VISION G


Z590 GAMING X

Z590M GAMING X


Z590 UD AC


Z590 UD


Z590 D

Z590M


B560 AORUS PRO AX


B560M AORUS PRO AX


B560M AORUS PRO

B560M AORUS ELITE


B560 HD3


B560M D3H
