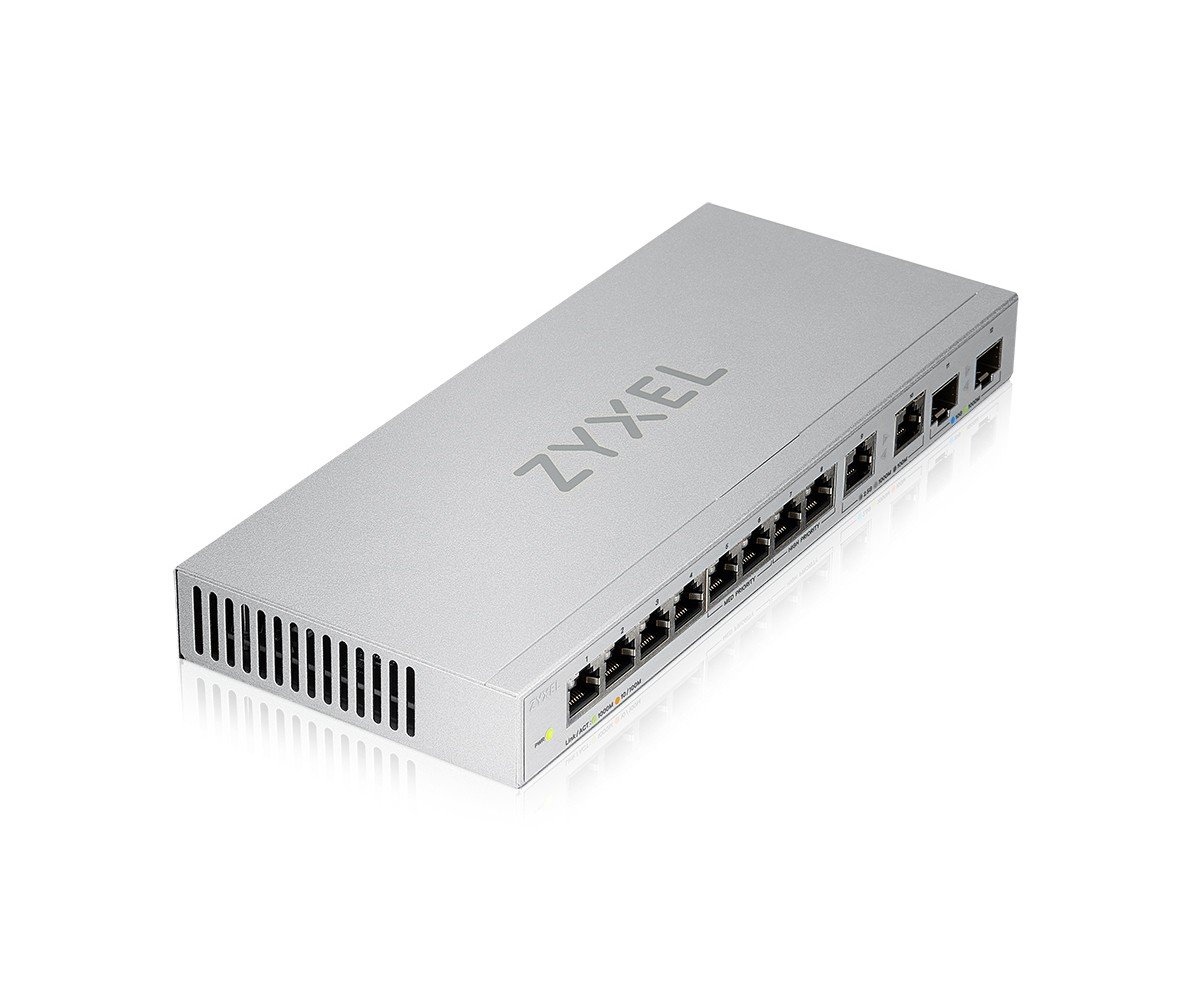

Zyxel XGS1010-12 v2, 12-Port Gigabit Unmanaged Switch with 8-Port 1G + 2-Port 2.5G + 2-Port SFP+

Standard

IEEE 802.3 10BASE-TX Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE802.3ab 1000BASE-T
IEEE 802.3bz 2500BASE-T Gigabit Ethernet
SFF-8431
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x full duplex operation and flow control

Performance

Switching capacity: 66 Gbps
Switching forwarding rate: 49 Mpps
MAC address table: 16 K
Packet buffer: 1.5 MB
Jumbo frame support up to 12 KB

Features

10M,100M,1G,2.5G and 10G ports for multi speed
Fanless and quiet
Plug and Play, Easy use and Quick Install
Support IEEE 802.3az Energy Efficient
Desktop and Wall mount
Auto-MDI/MDIX in all ports
QoS ports for smooth media streaming, VoIP calls, and online gaming
Weighted Fair Queuing (WFQ) priority QoS

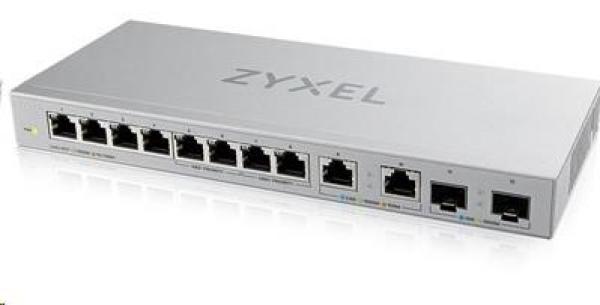

Interface

8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding
2 x RJ-45 100/1000/2500 Mbps Ethernet port with metal shielding
2 x SFP+
Hardware reset button

LED Indicator

PWR: Power
Port 1~8: Link/Activity
Green: 1000 Mbps
Amber: 10/100 Mbps
Port 9~10: Link/Activity
Sky Blue : 2.5Gbps
Green : 1Gbps
Amber: 100Mbps
Port 11~12: Link/Activity
Blue: 10Gbps
Green : 1000Mbps

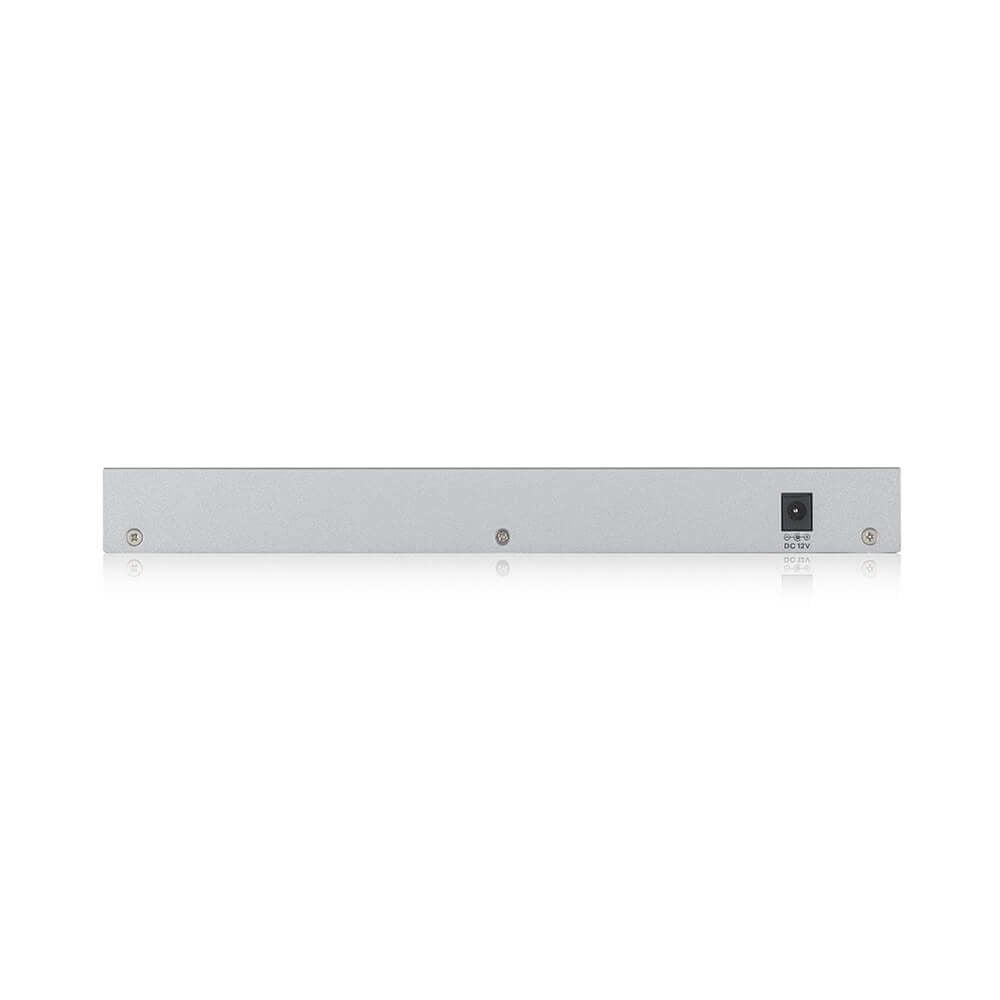

Power Supply

AC-to-DC external power adapter
Input: 100-240V~50-60Hz
Output: 12V DC/1.5A
