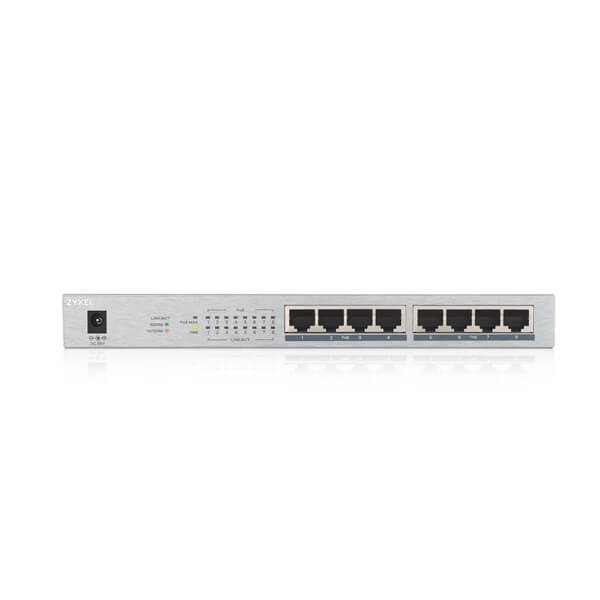

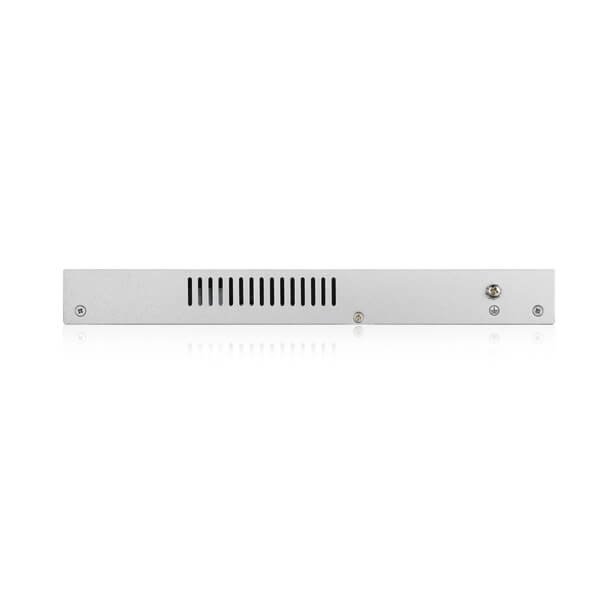

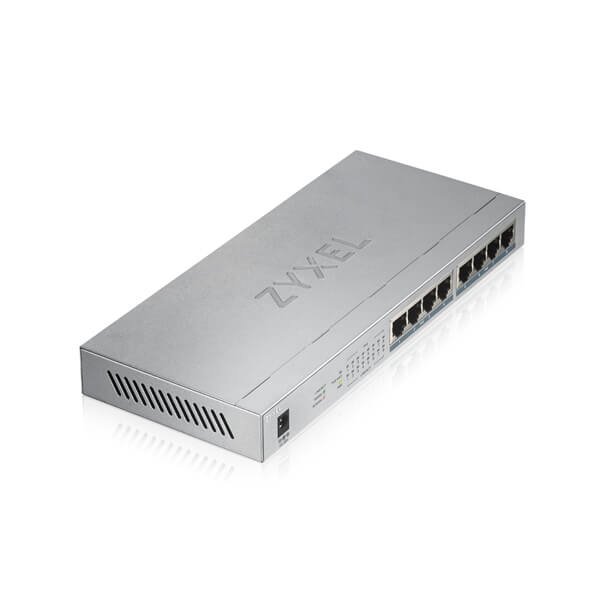

Zyxel GS1008-HP, 8 Port Gigabit PoE+ unmanaged desktop Switch, 8 x PoE, 60 Watt

System Specifications

Standard

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3 Nway auto-negotiation
IEEE 802.3x full duplex operation and flow control
IEEE 802.3az Energy Efficient Ethernet

Performance

Data transfer rate (half duplex/full duplex):
Ethernet: 10/20 Mbps
Fast Ethernet: 100/200 Mbps
Gigabit Ethernet: 1000/2000 Mbps
MAC address table: 4 K
Memory buffer: 192 KB
Switching fabric (non-blocking): 16 Gbps

Features

Compatible With IEEE 802.3af and 802.at Compliant PDs
Auto-MDI/MDIX in all ports
EEE802.3x Flow Control
IEEE 802.1p QoS
Jumbo frame support up to 9 KB



Interface

8 RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support

PoE Ports (RJ45)

Standard: 802.3af and 802.3at compliant
8 PoE+ ports, up to 30W per port
Total PoE Budget : 60W

LED Indicator

PWR: Power
PoE MAX:
Amber: PoE power output over 50W (total budget 60W)
Per port: Link/Activity
Amber: 10/100 Mbps
Green: 1000 Mbps
Per port : PoE+
Green: PoE supported

Power Supply

AC-to-DC external power adapter
Input: 100-240 V AC
Output: 55V DC/1.3A
