Ubiquiti airMAX AC LiteBeam 5 AC-17-90 GPS, LAP-GPS, 90°
| Kód tovaru: | 118767 |
|---|---|
| Výrobca: | Ubiquiti |
| PN kód: | LAP-GPS |
| EAN kód: | 817882025812 |
| Záruka: | 24 mesiacov |
| Dostupnosť: | nie je skladom |

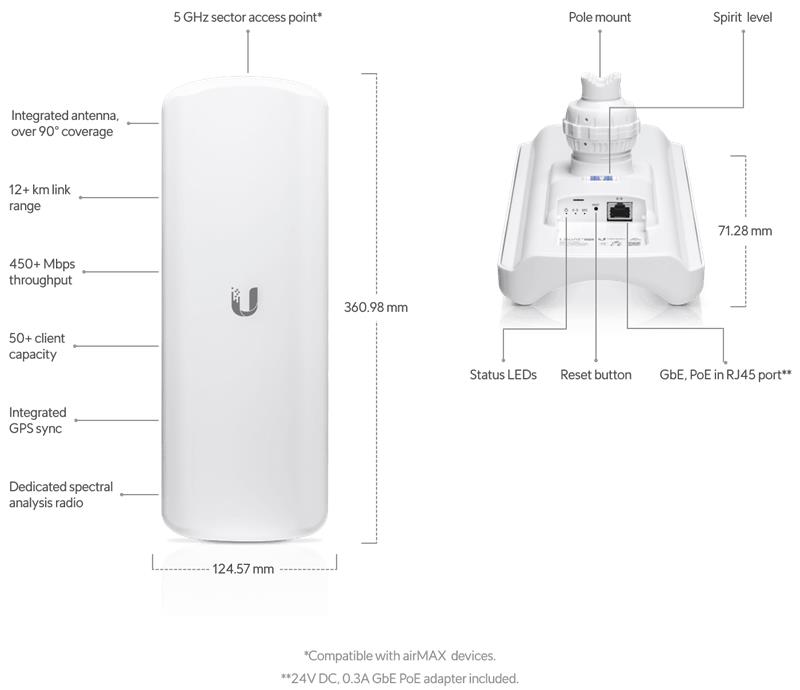

Powerful and affordable 5 GHz sector access point. GPS synchronized units provide up to 450+ Mbps data throughput.
Integrated 5 GHz antenna, 12+ km link range
450+ Mbps throughput
50+ client capacity
Dedicated spectral analysis radio
Integrated GPS sync
Technical Specifications

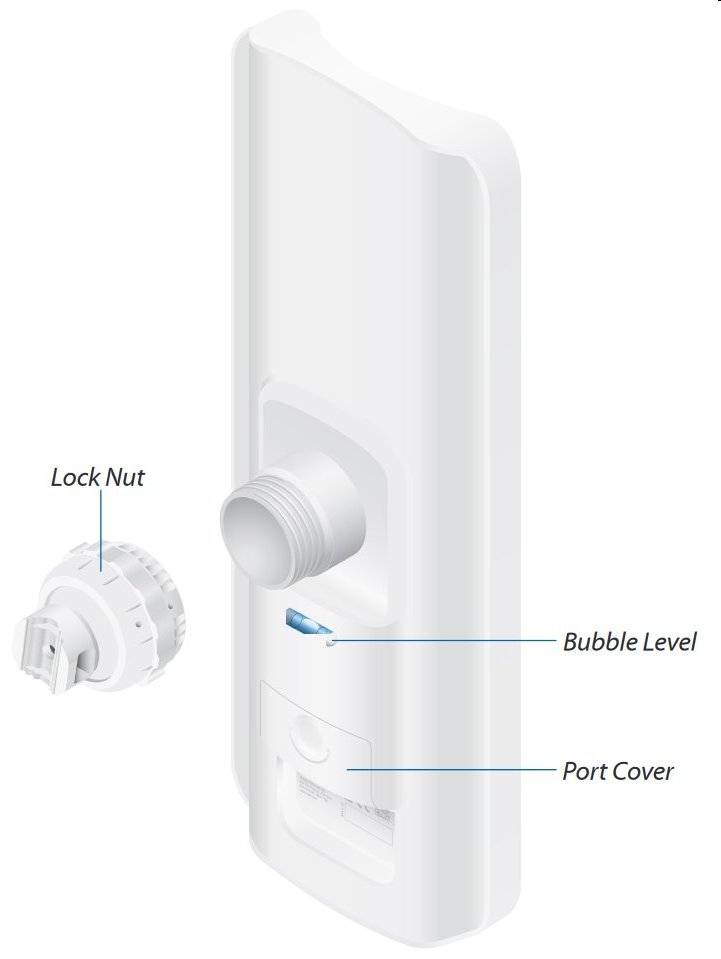

Mechanical
Dimensions 361 x 124.6 x 71.3 mm (14.2 x 4.9 x 2.8")
Weight 752 g (1.66 lb)
Wind survivability 200 km/h (125 mph)
Wind loading 77 N at 200 km/h (17.3 lbf at 125 mph)
Hardware

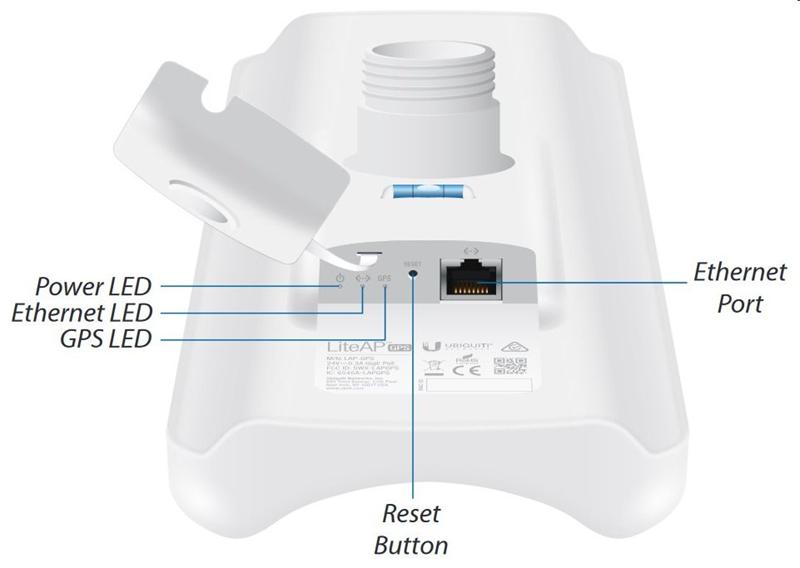

Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 0.3A gigabit PoE adapter (Included)
Supported voltage range 20—27V DC
Max. power consumption 7.1W
Max. TX power 25 dBm
Antenna gain 17 dBi
ESD/EMP protection Air/contact ± 24kV
Shock and vibrations ETSI300-019-1.4
Ambient operating temperature -40 to 70° C (-40 to 158° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1 5150-5250 MHz
U-NII-2A 5250-5350 MHz
U-NII-2C 5240-5725 MHz
U-NII-3 5725-5850 MHz
Management Radio (MHz)
US/CA 2412 - 2462 MHz
Worldwide 2412 - 2472 MHz
Parametre
| Hĺbka jedn. balenie | 9.1 |
| Hmotnosť jedn. balenie | 1.378 |
| Počet kusov jedn. balenie | 1 |
| Rozmer xyz jedn. balenie | 16.1x39.2x9.1 |
| Šírka jedn. balenie | 16.1 |
| Typ balenia jedn. balenie | Balitelné |
| Výška jedn. balenie | 39.2 |
| Hmotnosť kartónu | 17.500 |
| Typ obalu kartón | Expedovatelné |
| Počet kusov v kartóne | 12 |
| Rozmer xyz kartónu | 55x33.5x42 |
| Typ balenia kartónu | Balitelné |
| Počet LAN portov | 1 |
| Wi-Fi 5 (802.11ac) | Ano |
| Obsahuje switch | Ne |
| Použitie (vonkajšie/vnútorný) | Venkovní |
| Rýchlosť LAN max. | 1 Gbps |
| Rýchlosť Wi-Fi max. | 450 Mbit/s |
| Optika | Ne |
| Antény | Všesměrové |
| PoE | In (vstup) |
| PoE In standart | 802.3af (max. 15,4W) - PoE |
| PoE Out standard | Nepodporuje |
| PoE power budget (W) | Nevztahuje se |
| Typ zariadenia | Acces point/Bridge |
| Výrobce nemá info |
