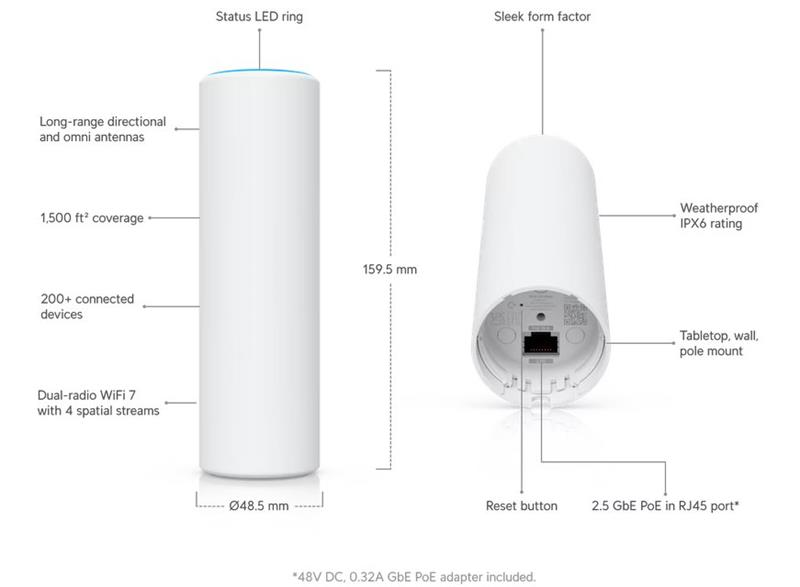

Ubiquiti UniFi AP 7 MESH WiFi7 (688/4300/---Mbps)
| Kód tovaru: | 2729074 |
|---|---|
| Výrobca: | Ubiquiti |
| PN kód: | U7-MESH |
| EAN kód: | |
| Záruka: | 24 mesiacov |
| Dostupnosť: | nie je skladom |
Produkt bude dostupný na konci 05-2026
Dimensions
?48.5 x 159.5 mm
(?1.9 x 6.3")
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
200+
Uplink
2.5 GbE
Mounting
Wall, Pole, Table stand
(Mounts included)
Weatherproofing
IPX6 (Installed with the outdoor mount)
Power Method
PoE
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
Omnidirectional: 6 dBi
Directional: 10 dBi
2.4 GHz
3 dBi
Max. TX Power
5 GHz
24 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing
?
Band Steering
?
802.11v BSS Transition Management
?
802.11r Fast Roaming
?
802.11k Radio Resource Management (RRM)
?
Advanced Radio Management
?
Passpoint (Hotspot 2.0)
?
Captive Hotspot Portal
Custom Branding Landing Page
?
Voucher Authentication
?
Payment-Based Authentication
?
External Portal Server Support
?
Password Authentication
?
Guest Network Isolation
?
Private Pre-Shared Key (PPSK)
?
WiFi Speed Limiting
?
Client Device Isolation
?
WiFi Schedules
?
RADIUS over TLS (RadSec)
?
Dynamic RADIUS-assigned VLAN
?
Max. Power Consumption
13W
Includes PoE Adapter
?
Supported Voltage Range
42.5–57V DC
Networking Interface
(1) 2.5 GbE RJ45 port
Weight
313 g (11 oz)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate
Mount Material
UV-stabilized polycarbonate
LEDs
System
W/B
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
NDAA Compliant
?
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
Mobile App
UniFi iOS™: Version 10.32.1 and later
Android™: Version 10.35.1 and later
Príslušenstvo
Ubiquiti UI Care pre U7-Mesh, Rozšírenie záruky na 5 rokov
Prémiové balíčky rozšířené záruky a servisních služeb řady UI Care od renomovaného výrobce Ubiquiti slouží k zajištění maximální provozní …
nie je skladom
Parametre
| Hĺbka jedn. balenie | 8 |
| Hmotnosť jedn. balenie | 0.918 |
| Počet kusov jedn. balenie | 1 |
| Rozmer xyz jedn. balenie | 22.3x21.5x8 |
| Šírka jedn. balenie | 22.3 |
| Typ balenia jedn. balenie | Balitelné |
| Výška jedn. balenie | 21.5 |
| Hmotnosť kartónu | 8.444 |
| Typ obalu kartón | Expedovatelné |
| Počet kusov v kartóne | 8 |
| Rozmer xyz kartónu | 39.4x50x27.1 |
| Typ balenia kartónu | Balitelné |
| Počet LAN portov | 1 |
| Wi-Fi 2,4 GHz | Ano |
| Wi-Fi 5 GHz | Ano |
| WiFi 2 (802.11a) | Ano |
| WiFi 1 (802.11b) | Ano |
| WiFi 3 (802.11g) | Ano |
| Wi-Fi 4 (802.11n) | Ano |
| Wi-Fi 5 (802.11ac) | Ano |
| Wi-Fi 6 (802.11ax) | Ano |
| Wi-Fi 7 (802.11be) | Ano |
| Obsahuje switch | Ne |
| Použitie (vonkajšie/vnútorný) | Venkovní |
| Rýchlosť LAN max. | 2,5 Gbps |
| Podpora Wifi Mesh | Ano |
| Optika | Ne |
| Antény | MIMO |
| PoE | In (vstup) |
| PoE In standart | 802.3af (max. 15,4W) - PoE |
| PoE Out standard | Nepodporuje |
| PoE power budget (W) | Nevztahuje se |
| USB port pri routeri | Není |
| Typ zariadenia | Acces point/Bridge |
