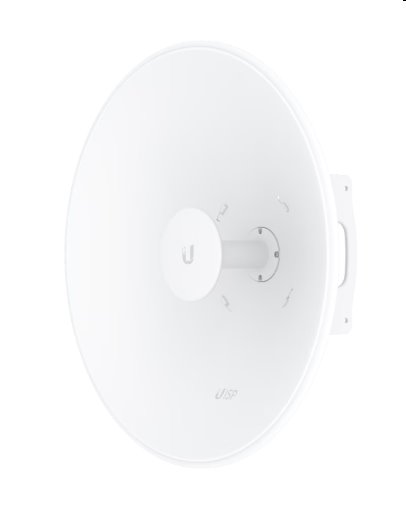

Ubiquiti UISP-Dish smerová anténa 5GHz 30dbI

 Anténa pro spoje Point-to-Point, která pokrývá široký frekvenční rozsah.

Compatibility:

Wave-MLO5

RP-5AC-Gen2

AF-5XHD

Mechanical

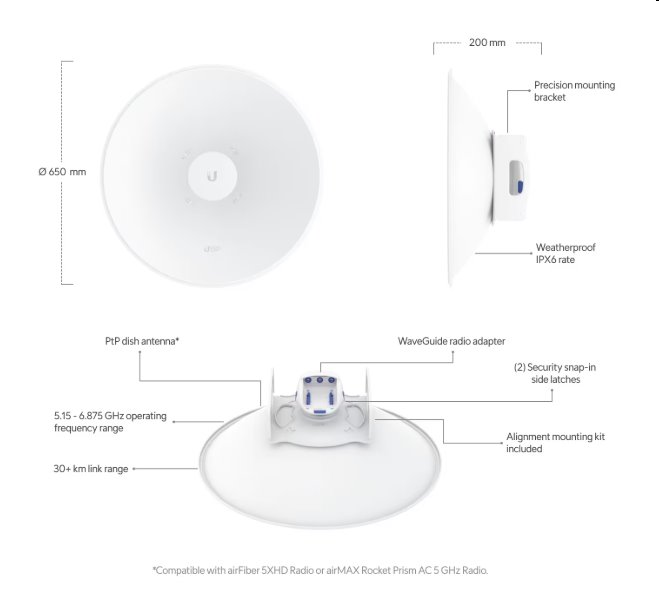

Dimensions O 650 x 200 mm (O 25.6 x 7.9")

Weight Device: 4.54 kg (10 lb)

Mount: 3.1 kg (6.8 lb)

Enclosure materials Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy

Wind survivability Up to 200 km/h (124 mph)

Wind loading 860 N at 200 km/h

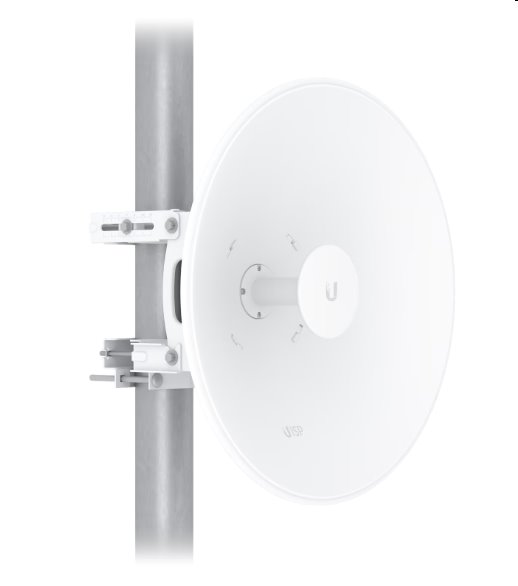

Mounting Alignment mounting kit (included)

Mechanical adjustment: ±15° elevation

Pole compatibility: O40 to 90mm (O1.57 to 3.5")

Weatherproofing IPX6



Hardware

Frequency range 5.15 to 6.875 GHz

Gain 30 dBi

Beamwidth Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)

Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)

Electrical downtilt 0°

Maximum VSWR 2:1

Polarization Dual-linear

Cross-pol isolation 20 dB
