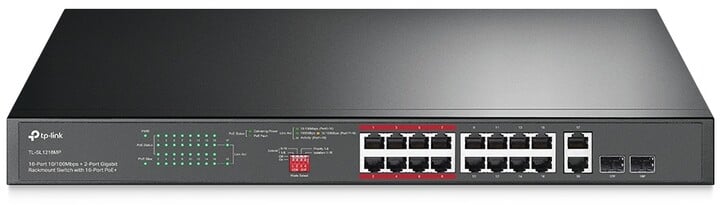

TP-Link TL-SL1218MP ver.2 16xFE 2xGb 2xSFP Unmanaged CCTV Switch 150W POE+

16-portový 10/100Mb/s + 2-portový gigabitový Unmanaged PoE Switch

*16 portů RJ45 PoE + 10/100Mb/s, 2 gigabitové porty RJ45 a 2 kombinované gigabitové SFP sloty.
*Přenos dat a napájení až do vzdálenosti 250 m v režimu prodloužení speciálně navrženého pro dohledový systém.
*Prioritní režim pro port 1-8, který zaručuje kvalitu citlivých aplikací, jako je například video monitor.
*Vysoký výkon PoE napájení, až 30 W pro každý PoE port a 194 W pro všechny PoE porty.
*Snadné použití bez nutnosti konfigurace a instalace.
*Tento switch není kompatibilní s produkty EAP225 v3 a EAP225-Outdoor v3

Technické parametry

HARDWARE FEATURES
*Interface:
-16 PoE+ 10/100Mbps RJ45 Ports
-2 10/100/1000Mbps RJ45 Ports
-2 Combo Gigabit SFP Slots
*Network Media:
-10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
-EIA/TIA-568 100? STP (maximum 100m)
-100BASE-TX: UTP category 5, 5e cable (maximum 100m)
-EIA/TIA-568 100? STP (maximum 100m)
-1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
-EIA/TIA-568 100? STP (maximum 100m)
-1000BASE-X MMF, SMF
*Fan Quantity: 2 Fans
*Power Supply: 100-240V AC, 50/60 Hz
*Backup Bandwidth: 7.2 Gbps
*PoE+ Ports(RJ45):
-Standard: 802.3at/802.3af compliant
-PoE Ports: Port1- Port16
-PoE Power Budget: 192W
*Mac Address Table: 8K
*Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
*Max Power Consumption:
-18.73 W (220/50Hz. no PD connected)
-217.22 W (220/50Hz. with 192W PD connected)
*Max Heat Dissipation:
-63.89 BTU/h (no PD connected)
-741.15 BTU/h (with 192W PD connected)

SOFTWARE FEATURES
*Advanced Features:
-Compatible With IEEE 802.3at/af Compliant PDs
-Port Priority Mode
-Extend Mode (Up to 250m PoE power supply and data transmission)
-Mac Address Auto-Learning And Auto-Aging
-IEEE802.3x Flow Control
*Transmission Method: Store-And-Forward

OTHERS
*Certification: CE, FCC, RoHS
*Package Contents: TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings
*Environment:
-Operating Temperature: 0°C~40°C (32°F~104°F)
-Storage Temperature: -40°C~70°C (-40°F~158°F)
-Operating Humidity: 10% ~ 90% non-condensing
-Storage Humidity: 5%~90% non-condensingTP-Link TL-SL1218MP ver.2 16xFE 2xGb 2xSFP Unmanaged CCTV Switch 150W POE+
