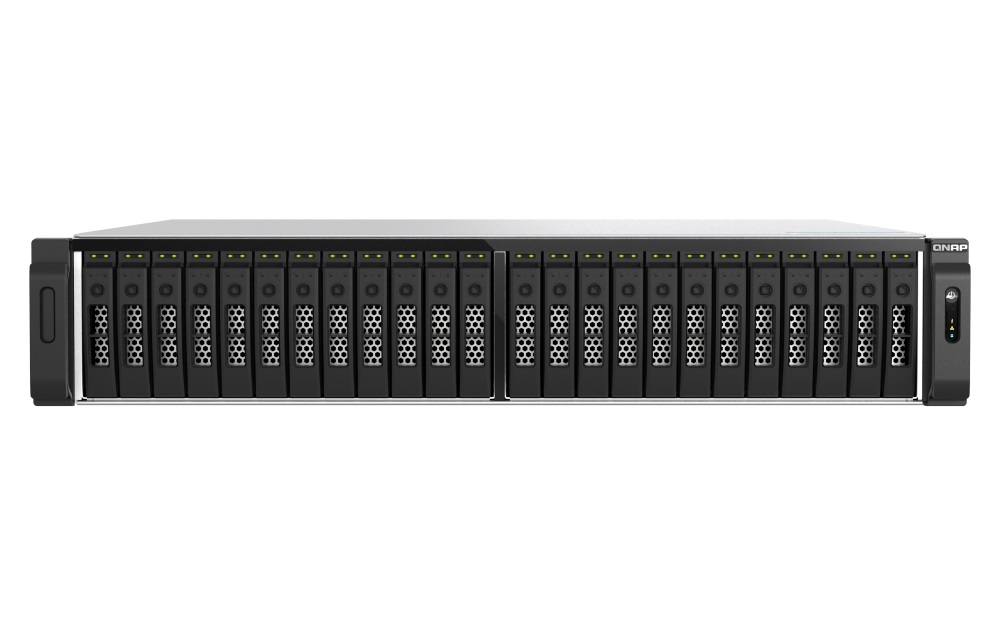

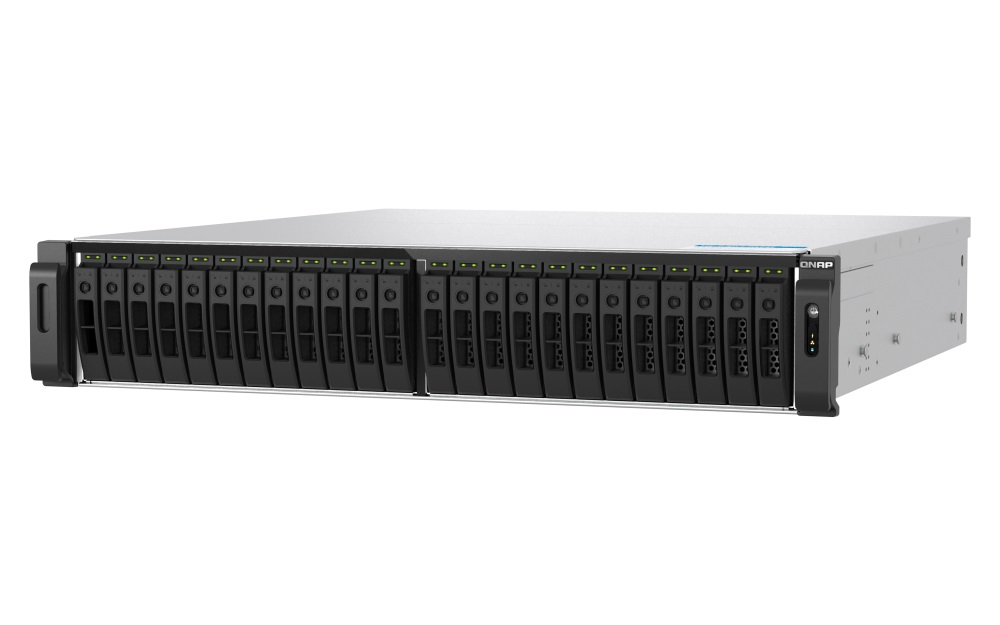

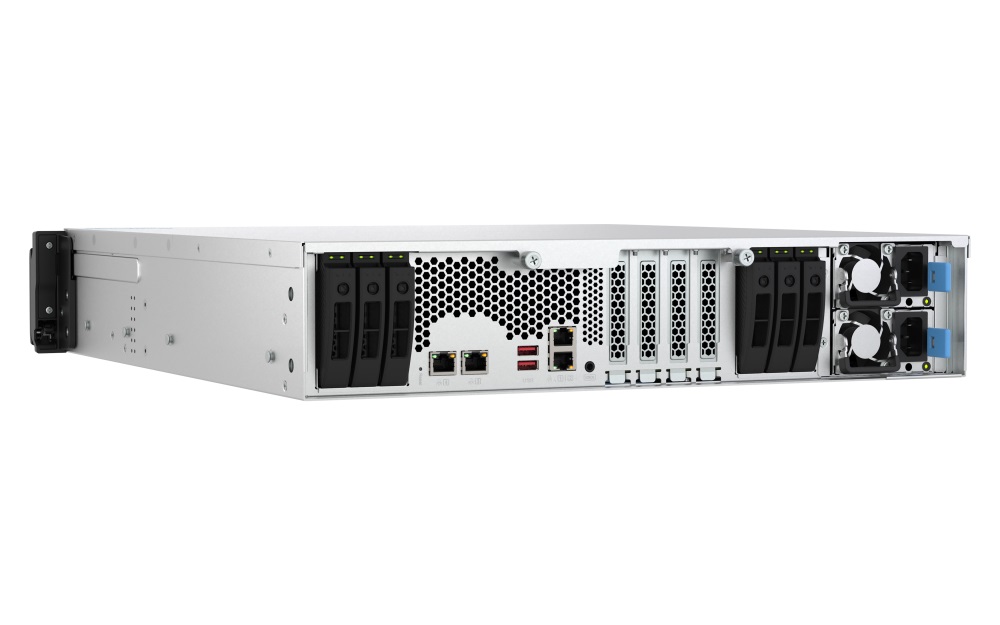

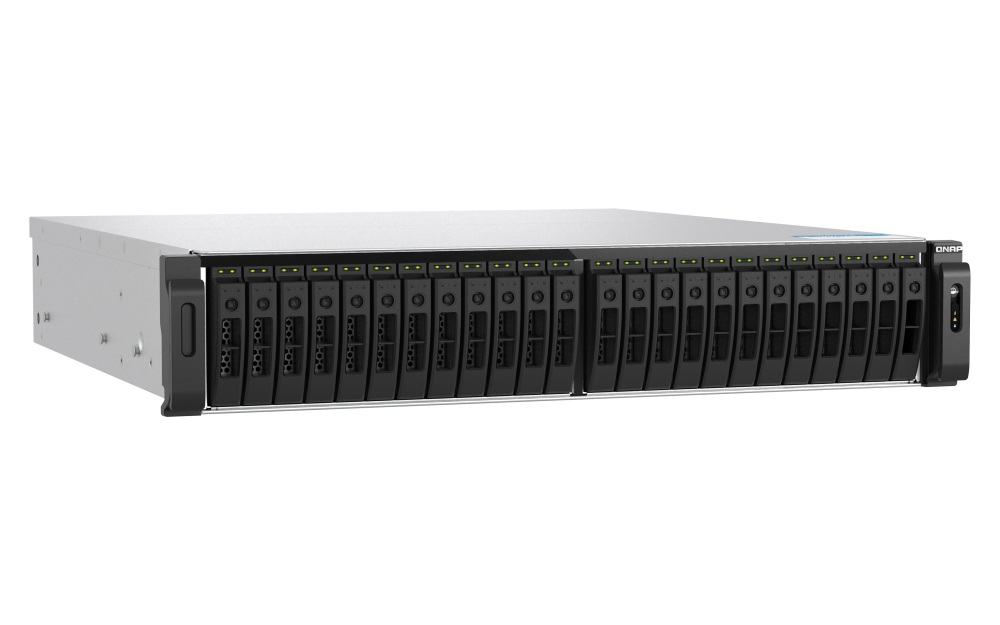

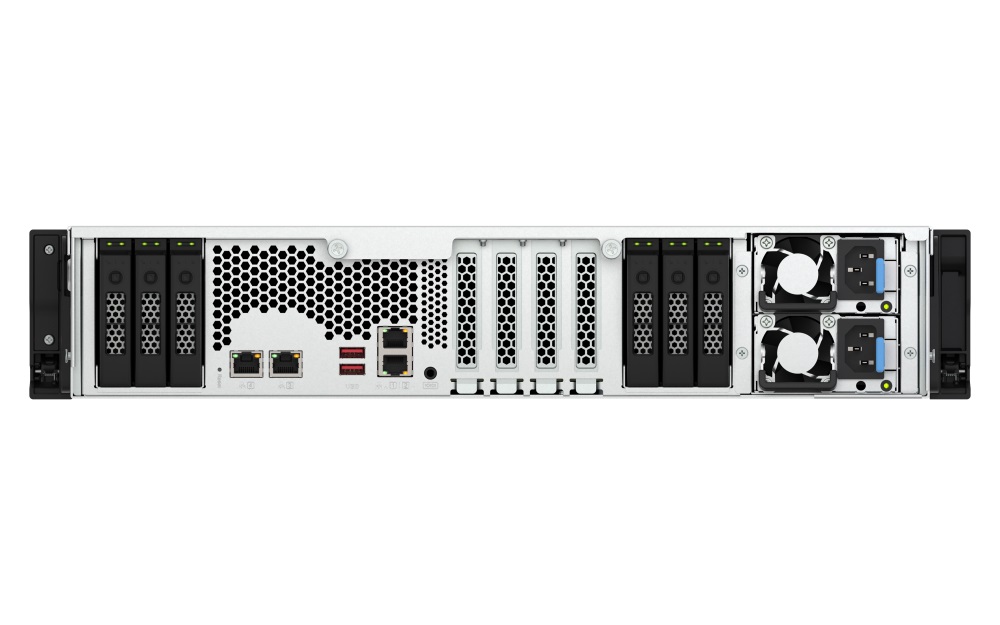

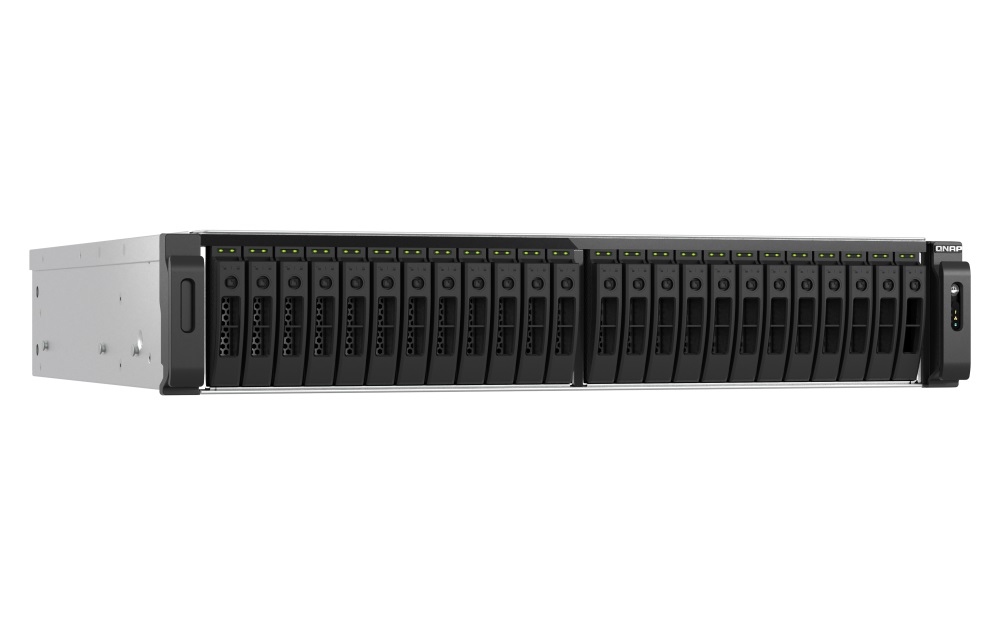

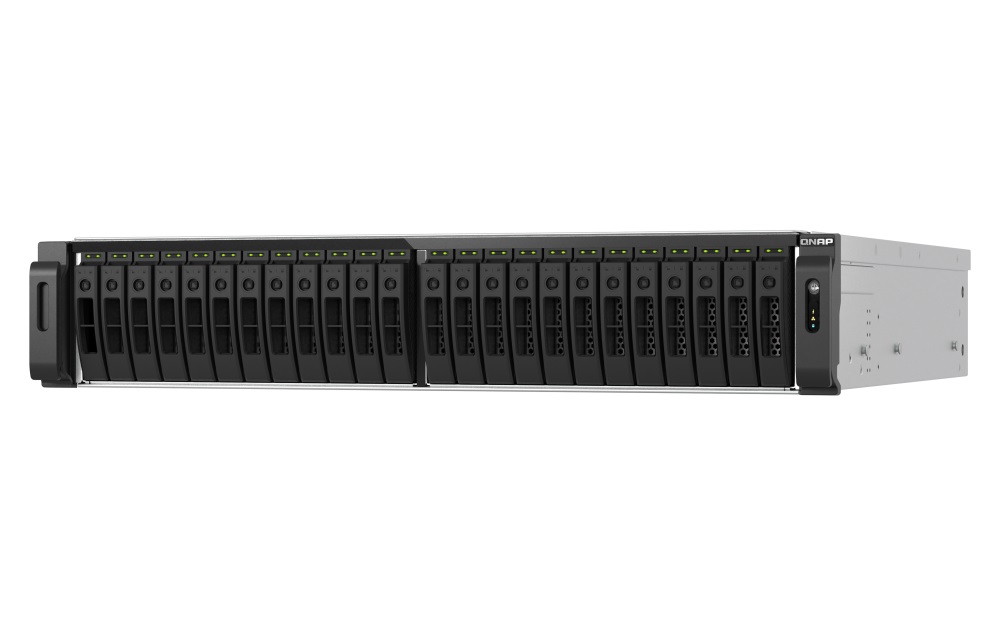

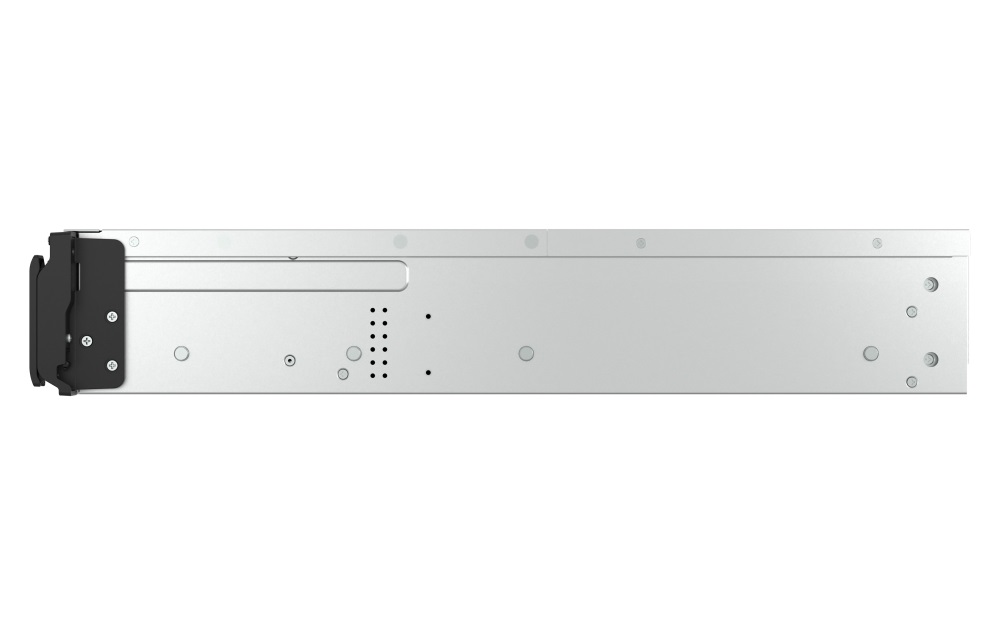

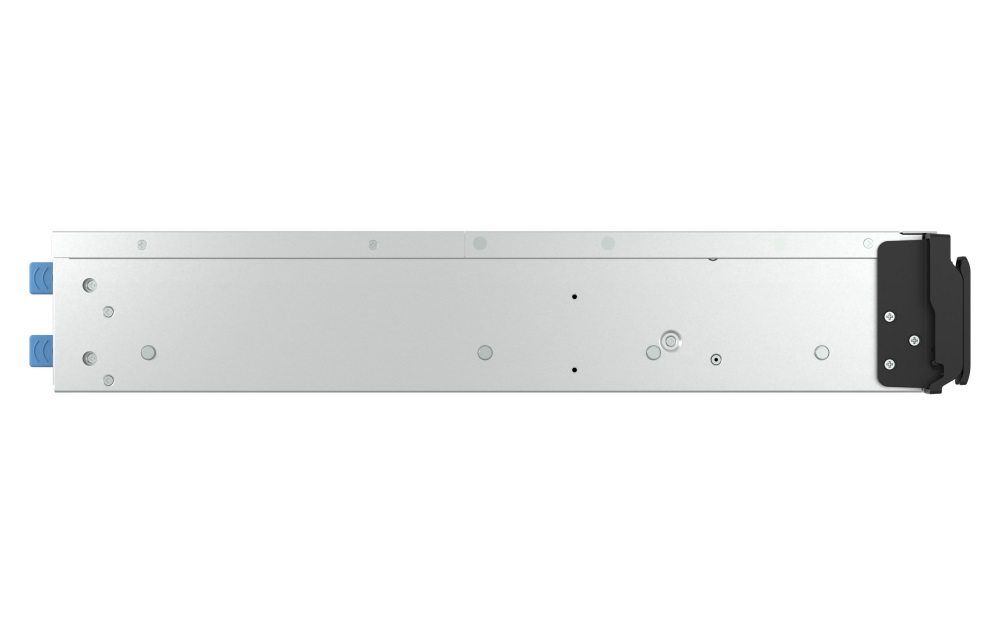

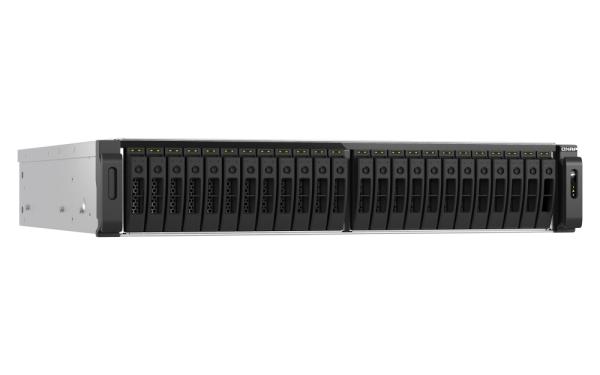

QNAP TS-h3077AFU-R7-64G(8C/ AMD Ryzen 7 7000/ 5, 3GHz/ 64GB/ 30x2, 5"SATA/ 2x2, 5GbE/ 2x10GbE/ 2xUSB3.2/ 3xPCIe/ RP)

Kód tovaru:	2443097
Výrobca:	QNAP
PN kód:	TS-h3077AFU-R7-64G
EAN kód:
Záruka:	24 mesiacov
Dostupnosť:	nie je skladom
Očakávané naskladnenie:	nie je známe

5843,75€ 4869,79€ bez DPH

Pridať do obľúbených

Príslušenstvo
Parametre

QNAP TS-h3077AFU-R7-64G

Vysoce spolehlivý all-flash NAS na bázi ZFS s procesorem AMD Ryzen™ řady 7000 – podpora všestranného podnikání s úložištěm v řádu petabajtů a s potenciálem 100GbE

Získejte konkurenční výhodu nasazením úložiště SATA SSD all-flash s procesorem AMD Ryzen™ řady 7000 a s 30 diskovými pozicemi. TS-h3077AFU je ideální pro mediální produkční společnosti, podniky a vědecko-výzkumné instituce, které potřebují vysoce výkonné velkokapacitní úložiště pro ukládání nahrávek, podnikových materiálů, velkých dat a virtuálních počítačů.

Stránky produktu: https://www.qnap.com/cs-cz/product/ts-h3077afu
Seznam kompatibility HDD/SSD: https://www.qnap.com/cs-cz/compatibility-expansion/?model=ts-h3077afu
Seznam kompatibility rozšiřujících jednotek: https://www.qnap.com/cs-cz/compatibility/?model=769&category=11&filter[type]=expansion_card

Specifikace hardware

CPU	AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz AMD Radeon Graphics AMD Radeon Graphics
Architektura CPU	x86 64 bitů
Jednotka s pohyblivou řádovou čárkou	✓
Šifrovací modul	✓ (AES-NI)
Hardwarově akcelerované překódování	✓
Systémová paměť	64 GB UDIMM DDR5 (2x 32 GB)
Maximální paměť	128 GB (4 x 32 GB)
Paměťový slot	4 x UDIMM DDR5 Support optional ECC memory
Paměť Flash	5GB (dvojitá ochrana OS při spouštění)
Pozice pro diskové jednotky	30 x 2.5-inch SATA 6Gb/s, 3Gb/s
Kompatibilita diskových jednotek	2,5" SATA SSD
Vyměnitelné za provozu	✓
Podpora akcelerace SSD cache	✓
Propustnost GPU	✓
2,5 Gigabitový Ethernet port (2,5G/1G/100M)	2 (2,5G/1G/100M/10M)
10 gigabitový Ethernet port	2 x 10GBASE-T (10 G/5 G/2,5 G/1 G/100 M)
Probuzení po síti LAN (WOL)	✓
Rámec Jumbo	✓
Slot PCIe	3 Slot 1: Gen 4 x 4 Slot 2: Gen 4 x 8 or Gen 4 x 4* Slot 3: Gen 4 x 4 Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use. Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use.
Port USB 3.2 Gen 2 (10 Gb/s)	2 x Type-A USB 3.2 Gen 2 10Gbps
Tvarový činitel	2U s montáží do racku
Indikátory LED	Power Status, SSD 1-30, Status, LAN, storage expansion port status
Tlačítka	Napájení, reset
Rozměry (V x Š x H)	88,3 × 482 × 549,7 mm Nezahrnuje háček a vyčnívající část napájecí jednotky. Nezahrnuje háček a vyčnívající část napájecí jednotky.
Hmotnost (čistá)	12,73 kg
Hmotnost (celková)	18,69 kg
Provozní teplota	0 – 40 °C (32 – 104 °F)
Skladovací teplota	-20 – 70 °C (-4 – 158 °F)
Relativní vlhkost	Relativní vlhkost 5 až -95 %, bez kondenzace, teplota vlhkého teploměru: 27 °C (80,6 °F)
Napájecí jednotka	550W(x2), 100-240V
Ventilátor	Systémový ventilátor: 3 x 60mm, 12 V DC
Systémové varování	Bzučák
Standardní záruka	5
Max. počet souběžných připojení (CIFS) – s max. pamětí	5000

Specifikace software

Operating System	QTS 5.1.3
Supported Client Operating Systems	1. Apple Mac OS 10.10 or later 2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux 3. IBM AIX 7, Solaris 10 or later UNIX 4. Microsoft Windows 7, 8, 10 and 11 5. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
Supported Browsers	1. Apple Safari (latest version) 2. Google Chrome (latest version) 3. Microsoft Edge (latest version) 4. Mozilla Firefox (latest version)
Supported Languages	Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool	✓
SED Storage Pool	✓
Maximum Pool size	308 TB
Maximum number of storage pool	128
Volume Type	Thick, Thin, Static
Maximum volume size	250 TB Note: At least 4 GB RAM is required.
Maximum number of volume	128
Maximum shared folder size	250 TB
Maximum number of shared folder	512
JBOD Expansion	✓
VJBOD / VJBOD Cloud	✓
iSCSI Service	✓
Fibre Channel Service	✓
LUN Type	Thick, Thin
File-based iSCSI LUN	✓
Block-based iSCSI LUN	✓
Maximum LUN size	250 TB Note: At least 4 GB RAM is required.
Maximum number of targets LUN	128
LUN feature	1. LUN Mapping (LUN can be moved between iSCSI and FC) 2. LUN Masking 3. WWPN Aliases Import/Export 4. FC Port Group 5. FC Port Binding 6. Multipath IO (MPIO) 7. Online LUN capacity expansion 8. LUN snapshot 9. LUN snapshot replication and clone
Auto Tiering	Requires minimum 2GB memory.
RAID Type	1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 4. 2-bay: JBOD, Single, RAID 0, 1
RAID Group	To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
RAID Level Migration	✓
RAID Expansion (by adding Disk)	✓
RAID Expansion (by replacing bigger Disks)	✓
Storage Pool Expansion (by adding RAID Group)	✓
RAID Hot Spare	Global, Local
RAID Sync/Rebuild/Scrubbing	✓
Internal drive	EXT4
External drive	EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model) Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.
Disk, Enclosure Locate	✓
Disk S.M.A.R.T. Scan	✓
Disk S.M.A.R.T. Data Migration	✓
Ironwolf Health Management	✓
Secure Erase	✓
SSD Trim	✓
SSD Life Estimation	✓
Disk Roaming	✓
Disk Standby	✓
Volume Snapshot	✓
LUN Snapshot	✓
Maximum Snapshot (Per System)	Check maximum number of snapshots of your NAS
Maximum Snapshot (Per Volume / LUN)	Check maximum number of snapshots of your NAS
Minimum Snapshot Interval	5 minutes
Snapshot Retention Policy	✓
Self-serve Snapshot Recovery	✓
Application Consisted Snapshot	✓
Snapshot Full Clone	✓
Snapshot Replica / Vault	✓
SSD read-only Cache	✓
SSD read-write cache	✓
SSD write-only cache	✓
SSD Cache Maximum Size	Check your QNAP NAS cache capacity and RAM requirements
SSD Cache RAID	0, 1, 5, 6, 10
SSD profiling tool	✓
External Device Management	✓
Mount Smart Phone (MTP)	✓
External RAID Device (QNAP so on) Management (External Device Mode)	✓
External RAID Device (QNAP so on) Management (NAS Mode)	✓
File Server	1. File sharing across Windows, Mac, and Linux/UNIX 2. Microsoft networking (CIFS/SMB) 3. Apple networking (AFP) 4. NFS version 3/4 services
FTP Server	1. QuFTP 2. FTP, SFTP and TFTP protocols 3. FTP over SSL/TLS (explicit FTPS) 4. FXP support
Maximum FTP connection	✓
File Station (Web)	✓
Object Storage	✓
Local user account	4,096
Local group account	512
Domain user/group account	200
Domain Security	✓
Domain Controller	✓
Shared folder permission	✓
Advanced folder permission	✓, (AFP, CIFS/SMB, FTP, and File Station)
Windows ACL	✓, (CIFS/SMB)
User quota	✓
Group quota	✓
Folder quota	✓, (Snapshot shared folder)
Home folder	✓
Resource Monitor	✓
SNMP	V2, V3
Network recycle bin	1. Recover files deleted using AFP, CIFS/SMB, and File Station 2. Automatic cleanup and file type filter
System Log & Notification Center	Log recording: 3,000 event per second
Smart Fan	✓
Schedule on/off	✓
Internet protocol	IPv4, IPv6
Virtual Switch	✓
Port trunking	✓, (7 modes)
VLAN	✓
DHCP Server	✓
DDNS (Dynamic Domain Name Service)	✓
Network access protection with auto-blocking	SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
Security Counselor	✓
Malware Remover	✓
AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP	✓
2-step verification	✓
Allow/Deny List	✓
Access Protection	✓
Service binding	✓
Firewall	✓
vSphere Web Client Plug-in	✓
VMware vSphere VAAI for iSCSI	✓
VMware vSphere VAAI for NAS	✓
Windows ODX	✓
Windows/VMware Snapshot Agent	✓
HTTP/HTTPS Connections	TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection	✓
Supports Virtual Hosts	32
Qsync	Note: At least 1 GB RAM is required.
[Qsync] Management Mode	User customization, Central
[Qsync] Qsync client supported platforms	Windows, macOS, Ubuntu, Android, and iOS
[Qsync] Maximum number of version control	64
HybridMount	Note: At least 1 GB RAM is required.
[HybridMount] File Cloud Gateway	Concurrent Connections = 20 Upload & 20 Download
[HybridMount] Network Drive Mount	✓
[HybridMount] Free cloud gateway sessions	2
HBS (Hybrid Backup Sync)	Note: At least 1 GB RAM is required.
[HBS (Hybrid Backup Sync)] NAS to NAS backup	✓
[HBS (Hybrid Backup Sync)] Cloud Backup	✓
[HBS (Hybrid Backup Sync)] Cloud Sync	✓
[HBS (Hybrid Backup Sync)] 2-way and Active Sync	✓
[HBS (Hybrid Backup Sync)] Backup Deduplication	✓
[HBS (Hybrid Backup Sync)] Apple Time Machine Backup	✓
[HBS (Hybrid Backup Sync)] External drive backup	✓
[HBS (Hybrid Backup Sync)] Maximum number of backup job	400
Hyper Data Protector	✓
Boxafe	Note: At least 4 GB RAM is required.
[Boxafe] Office 365 Backup	✓
[Boxafe] Google Workspace Backup	✓
[Boxafe] Full-text search	✓
Qsirch	Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
[Qsirch] Previews	Photos, music, videos, PDFs, Gmail, and others
[Qsirch] Integrate Mac Finder	✓
[Qsirch] Advanced picture search	✓
[Qsirch] Search filters	✓
QuMagie	Note: At least 1 GB RAM is required.
[QuMagie] Browse photos	✓
[QuMagie] Virtual and smart albums	✓
[QuMagie] AI-assisted photo management	People, things, places, and others
Antivirus (free)	✓
McAfee (License)	✓
QVPN Service	Note: At least 1 GB RAM is required.
[QVPN Service] Remote Access	PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)
[QVPN Service] Supportedd utility and mobile app	Windows, macOS, iOS, and Android
[QVPN Service] Supported maximum clients	100
LDAP Server	✓
RADIUS	✓
SQL server	✓
License Center	✓
Multimedia Console	✓
Photo Station	✓
Music Station	✓
Video Station	✓
Download Station	✓
Notes Station	✓
Qfiling	✓
Media Streaming add-on	✓
QmailAgent	✓
QuWAN	✓
DA Driver Analyzer	✓
Qcenter	Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
Qcenter Server	✓
Qcenter Agent	✓
Connect to Qcenter	✓
Virtualization Station	Note: At least 4 GB RAM is required.
[Virtualization Station] Supports Virtual machine instances	Windows, Linux, Unix, and Android
[Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration	All function is Fine.
[Virtualization Station] Virtual switches	Can create a virtual switch
[Virtualization Station] GPU pass-through	Not support GPU
[Virtualization Station] Suggested number of virtual machine instances	16 The actual number of virtual machine instances may vary by the memory installed on NAS (e.g. 1 VM= 1 thread for 1 vCPU and 1GB memory). Please expend memory if needed.
Container Station	Note: At least 1 GB RAM is required.
[Container Station] Supported type	LXC/LXD and Docker Note: LXD has been supported after Container Station 2.4
[Container Station] Docker Hub Registry	✓
[Container Station] Container importing and exporting	✓
[Container Station] Console mode	✓
Linux Station	Notification: At least 4 GB RAM is required.
[Linux Station] Supports Ubuntu versions	18.04, and 20.04
Linux Station Center	✓
QVR Pro	Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Pro] Recording Technique	Index database based
[QVR Pro] License Type	Perpetual
[QVR Pro] User-defined trigger events	✓
[QVR Pro] Metadata	✓
[QVR Pro] QVR Pro Client (Desktop)	Windows, macOS, and QNAP HybridDesk Station
[QVR Pro] QVR Pro Client (Mobile)	Android and iOS
[QVR Pro] Recording camera streams	H.264
[QVR Pro] Free built-in camera channels	8
QVR Elite	Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Elite] Recording Technique	Standard MP4 file based
[QVR Elite] License Type	Subscription-based
[QVR Elite] User-defined trigger events	✓
[QVR Elite] QVR Pro Client (Desktop)	Windows, macOS, and QNAP HybridDesk Station
[QVR Elite] QVR Pro Client (Mobile)	Android and iOS
[QVR Elite] Recording camera streams	H.264
[QVR Elite] Free built-in camera channels	2
QVR Pro Client	✓
[QVR Pro Client] Dynamic View Layout	✓
[QVR Pro Client] Windows	✓
[QVR Pro Client] Mac	✓
[QVR Pro Client] HybridDesktop	✓
[QVR Pro Client] iOS	✓
[QVR Pro Client] Android	✓
QVR Center	Note: At least 4 GB RAM is required.
[QVR Center] Log management	✓
[QVR Center] Central monitoring across multiple servers	✓
QVR Guard	Note: At least 4 GB RAM is required.
[QVR Guard] Failover design	✓
[QVR Guard] Viewing task details	✓
[QVR Guard] Automatic switch between Standby and Takeover modes	✓
QVR Human	✓
QVR Face	The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/
QVR DoorAccess	✓

Príslušenstvo

Parametre

Počet kusů jedn. balení	1
Typ balení jedn. balení	Kompletní
Provedení	Do racku
Počet pozic na disky	30
Počet 2,5" HDD max	24 a více
HDMI	Ne
Počet LAN portů	2
Počet USB portů	2
Počet SFP+ portů	2
Modelová řada CPU	AMD Ryzen 7
Přesný model CPU	R7-7000
Počet jader	8
Typ RAM	DDR5
Velikost RAM (GB)	64
ZFS OS	Ano
Rozměr xyz jedn. balení	74x32x59
Hmotnost jedn. balení	18.400
Hloubka jedn. balení	59
Šířka jedn. balení	74
Výška jedn. balení	32
