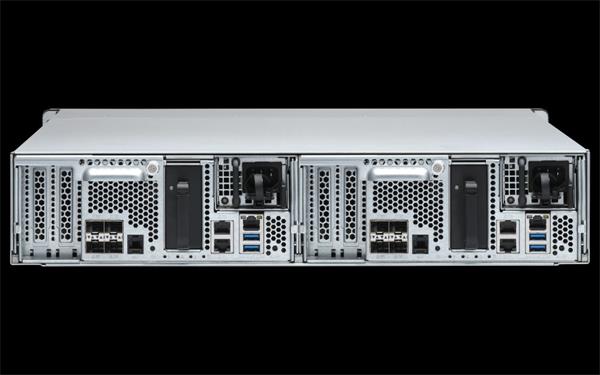

QNAP™ TDS-h2489FU-R2-4309Y-64G

Kód tovaru:	2629779
Výrobca:	QNAP
PN kód:	TDS-h2489FU-R2-4309Y-64G
EAN kód:
Záruka:	1860 dní
Dostupnosť:	nie je skladom

17816,09€ 14484,63€ bez DPH

Pridať do obľúbených

TDS-h2489FU-R2-4309Y-64G
CPU 2 x Intel® Xeon® Silver 4309Y 8-core/16-thread processor, up to 3.6 GHz
CPU Architecture 64-bit x86
Encryption Engine (AES-NI)
System Memory 64 GB RDIMM DDR4 ECC (8 x 8 GB)
Maximum Memory 1 TB (32 x 32 GB)
Memory Slot 32 x RDIMM DDR4 ECC (16 x slots per socket)
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 24 (16 x 2.5-inch U.2 PCIe NVMe + 8 x 2.5-inch U.2 PCIe NVMe/SATA 6Gbps)
The system is shipped without SSD.
For the SSD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 2.5-inch bays:
2.5-inch SATA solid state drives (#17-24)
2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives
Hot-swappable (Not supported M.2 SSD)
M.2 Slot 2
Slot 1: M.2 2280 NVMe PCIe Gen 3 x4 or SATA 6Gb/s
Slot 2: M.2 2280 NVMe PCIe Gen 3 x2 or SATA 6Gb/s
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
SSD Cache Acceleration Support
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 4 (2.5G/1G/100M/10M)
25 Gigabit Ethernet Port 2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)
Only the 2.5GbE port
Jumbo Frame
PCIe Slot 4
Slot 1: PCIe Gen4 x16 or Gen4 x8*
Slot 2: PCIe Gen4 x8
Slot 3: PCIe Gen4 x16 or Gen4 x8*
Slot 4: PCIe Gen4 x8
*Slot 4 is preinstalled with a 25GbE network adapter.
**Slot 1 provides the width of PCIe Gen4 x16 when Slot 2 is not in use, and provides the width of PCIe Gen4 x8 when Slot 2 is in use.
**Slot 3 provides the width of PCIe Gen4 x16 when Slot 4 is not in use, and provides the width of PCIe Gen4 x8 when Slot 4 is in use.
Card dimensions for PCIe slot 1:225 x 68.9 x 39.08 mm / 8.86 x 2.71 x 1.54 inches.
Card dimensions for PCIe slot 2:225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches.
Card dimensions for PCIe slot 3:225 x 68.9 x 39.08 mm / 8.86 x 2.71 x 1.54 inches.
Card dimensions for PCIe slot 4:225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port 4
Form Factor Rackmount
LED Indicators SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address
Buttons Power, Reset, OLED
Dimensions (HxWxD) 88.3 × 446.2 × 713.2 mm
Weight (Net) 22.77 kg
Weight (Gross) 27.55 kg
Operating Temperature 0 - 35°C (32°F - 95°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit 1200W PSU(x2), 100-240Vac
Max Wattage:
1200W@200-240Vac
1000W@100-127Vac
Power Consumption: Operating Mode, Typical 467.59 W
Tested with drives fully populated.
Fan 6 x 60mm, 12VDC
System Warning Buzzer
Standard Warranty 5
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 10,000

Príslušenstvo

Parametre

Typ CPU	Intel Xeon 8-Core
Zákl.frekvencia jadra CPU (GHz)	3,6
Počet jadier CPU	8
Prevedenie	Do racku
Počet pozícií na disky	24
Typ pripojenia	25GbE
Počet USB portov	4
Presný model CPU	Intel® Xeon® Silver 4309Y
ZFS OS	Ano
Počet kusov jedn. balenie	1
Typ balenia jedn. balenie	???
Konektor HDMI	Ne
Operačná pamäť (GB)	64
Typ pamäte	DDR4
Počet LAN portov	4
HDMI (počet)	0
Podpora redundancie zdroja	Ano
