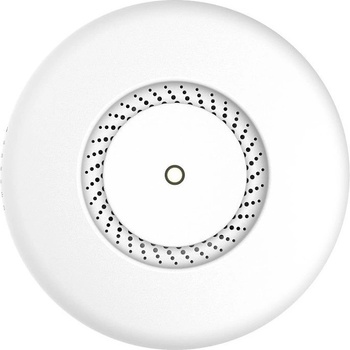

MIKROTIK RouterBOARD cAP AC + L4 (716MHz, 128MB RAM, 2x GLAN, 1x 2,4+5GHz 802.11ac)
| Kód tovaru: | 51448 |
|---|
| Výrobca: | MikroTik |
|---|
| PN kód: | RBcAPGi-5acD2nD |
|---|
| EAN kód: | 4752224003416 |
|---|
| Záruka: | 24 mesiacov |
|---|
| Dostupnosť: | skladom (12) |
|---|
76,09€
61,86€ bez DPH
Specifications
Details |
|---|
Product code |
RBcAPGi-5acD2nD |
Architecture |
ARM 32bit |
CPU |
IPQ-4018 |
CPU core count |
4 |
CPU nominal frequency |
716 MHz |
Dimensions |
Round case: ? 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm |
License level |
4 |
Operating System |
RouterOS |
Size of RAM |
128 MB |
Storage size |
16 MB |
Storage type |
FLASH |
Tested ambient temperature |
-40°C to 50°C |
Powering
Details |
|---|
PoE in |
802.3af/at |
PoE out |
Passive PoE up to 57V |
PoE in input Voltage |
17-57 V |
Number of DC inputs |
1 (PoE-IN) |
Max out per port output (input > 30 V) |
400 mA |
Max out per port output (input < 30 V) |
500 mA |
Max total out (A) |
500 mA |
Max power consumption |
24 W |
Max power consumption without attachments |
13 W |
Wireless
Details |
|---|
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
Wireless 2.4 GHz standards |
802.11b/g/n |
AC speed |
AC1200 |
Antenna gain dBi for 2.4 GHz |
2 |
Wireless 2.4 GHz chip model |
IPQ-4018 |
Wireless 5 GHz number of chains |
2 |
Wireless 5 GHz Max data rate |
867 Mbit/s |
Wireless 5 GHz standards |
802.11a/n/ac |
Antenna gain dBi for 5 GHz |
2.5 |
Wireless 5 GHz chip model |
IPQ-4018 |
Ethernet
Details |
|---|
10/100/1000 Ethernet ports |
2 |
Other
Wireless specifications
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
|---|
1MBit/s |
26 |
-100 |
11MBit/s |
26 |
-94 |
6MBit/s |
26 |
-96 |
54MBit/s |
23 |
-78 |
MCS0 |
26 |
-96 |
MCS7 |
22 |
-73 |
5 GHz |
Transmit (dBm) |
Receive Sensitivity |
|---|
<td sty |
Parametre
| Hĺbka jedn. balenie | 6 |
| Hmotnosť jedn. balenie | 0.710 |
| Počet kusov jedn. balenie | 1 |
| Rozmer xyz jedn. balenie | 26.5x18x6 |
| Šírka jedn. balenie | 26.5 |
| Typ balenia jedn. balenie | Balitelné |
| Výška jedn. balenie | 18 |
| Počet LAN portov | 2 |
| WiFi 1 (802.11b) | Ano |
| WiFi 3 (802.11g) | Ano |
| Wi-Fi 4 (802.11n) | Ano |
| Wi-Fi 5 (802.11ac) | Ano |
| Použitie (vonkajšie/vnútorný) | Vnitřní |
| Rýchlosť LAN max. | 1 Gbps |
| Rýchlosť Wi-Fi max. | 300 Mbit/s |
| PoE | In (vstup) |
| PoE In standart | 802.3at (max. 33,6W) - PoE+ |
| PoE Out standard | Nepodporuje |
| PoE power budget (W) | Nevztahuje se |
| Typ zariadenia | Acces point/Bridge |
| Výrobce nemá info |
