ASUS Pro WS 1600W PLATINUM Modular

ASUS Pro WS 1600W Platinum PSU delivers exceptional voltage stability and advanced power delivery for professionals, supporting up to two graphics cards to meet the demanding AI workloads.

Heavy-duty PSU: Supports up to two GeForce RTX™ 5090 graphics cards via rock-solid voltage stability and advanced power delivery.

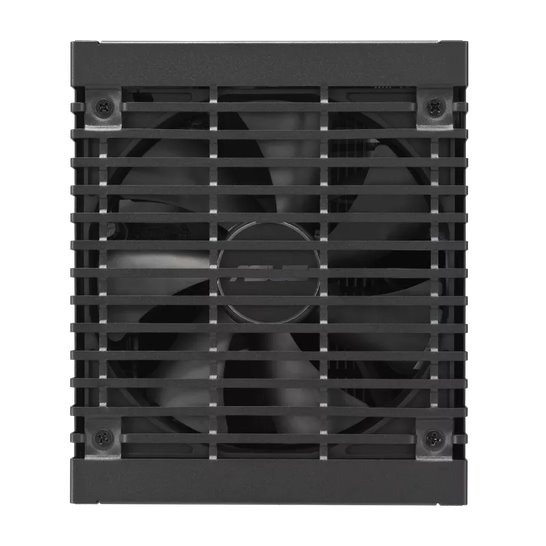

Dual-ball fan bearings: Designed to last up to twice as long as sleeve-bearing designs.

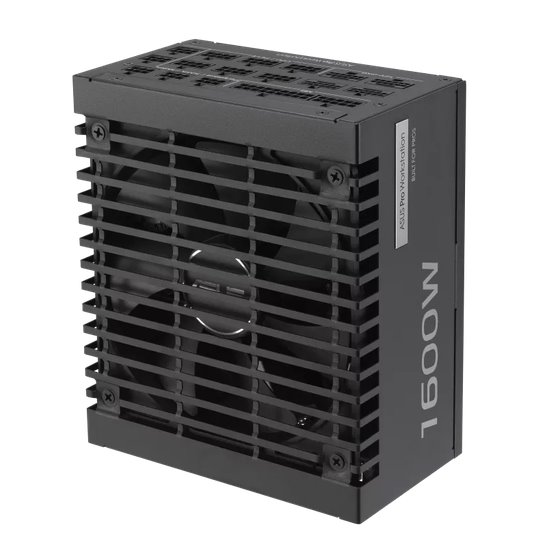

Extruded aluminum heatsinks: Cover critical components, delivering lower temperatures and noise versus reference designs.
ATX 3.1 compatible: Compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation.
PCIe® 5.1 ready: Features native 12V-2x6 connectors for cutting-edge graphics card power.
80 PLUS Platinum certified: Utilizes low-ESR Japanese server grade capacitors and premium components for industry-leading power efficiency.
10-year warranty: Provides confidence in long-term reliability.

ASUS-PRO-WS-1600P
Intel Form Factor

ATX12V
PFC Type

Active PFC
ATX Standard

ATX 3.1
80 PLUS Efficiency

80Plus Platinum
Protection Features

OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials

ROHS
AC Input Range

200-240Vac
DC Output Voltage

+3.3V +5V +12V -12V +5Vsb
Maximum Load

25A 25A 133.3A 0.8A 3A
Combined Load

130W 130W 1600W 9.6W 15W
Total Output

1600W

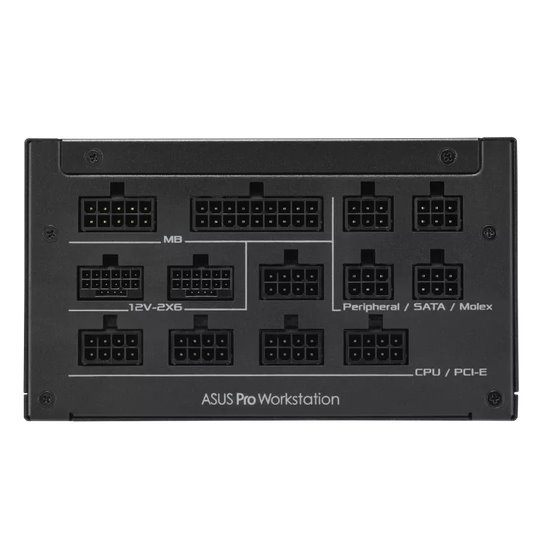

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCIE 5.1 16-pin x 2
PCIE 6+2-pin x 4
SATA x 9
PERIPHERAL x 3

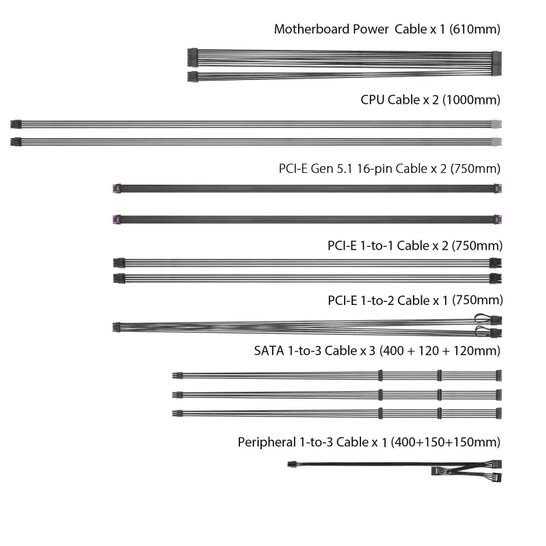

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x 2 (750mm)
PCI-E 1-to-1 Cable x 2 (750mm)
PCI-E 1-to-2 Cable x 1 (750+100mm)
SATA 1-to-3 Cable x 3 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
Chassis Screws Package x 1
Cable Tie x 6
User Manual x 1
Dimensions

175 x 150 x 86 mm
Weight

2.0 kg (single PSU)
AURA SYNC

No
0dB Fan Button

No, this product is without 0dB technology.
