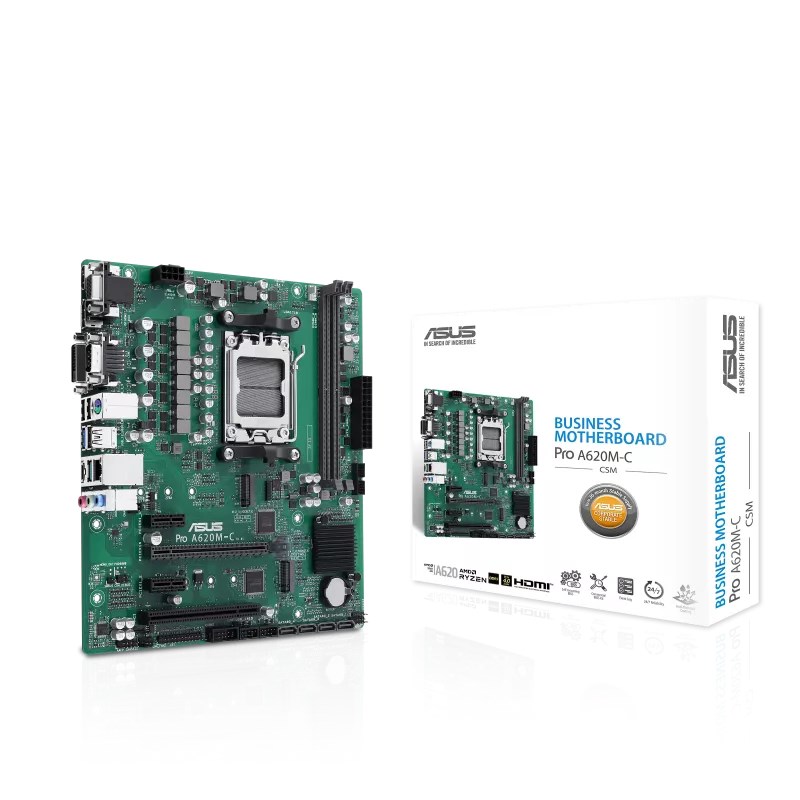

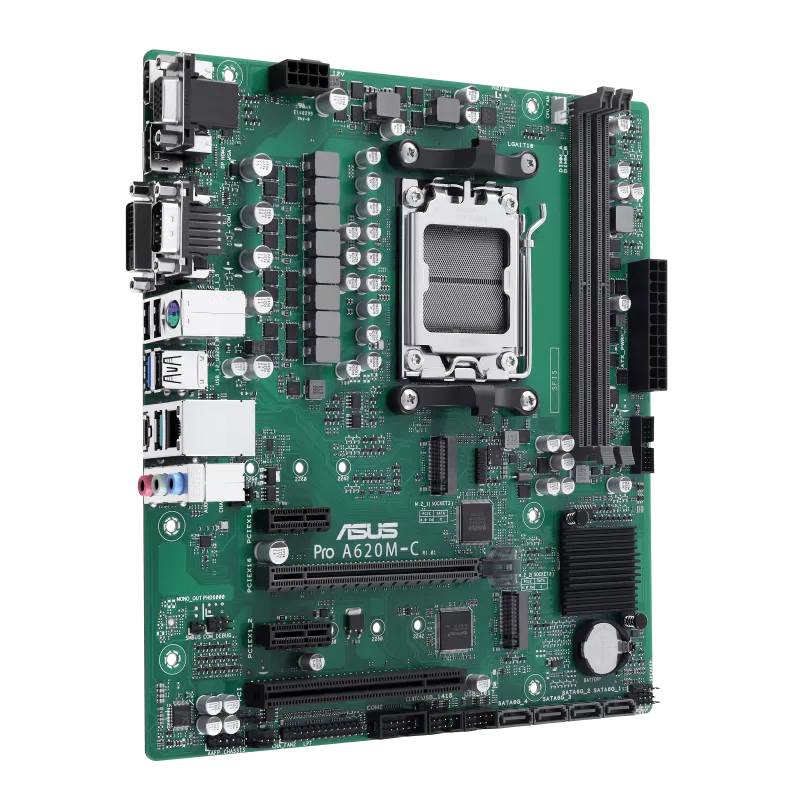

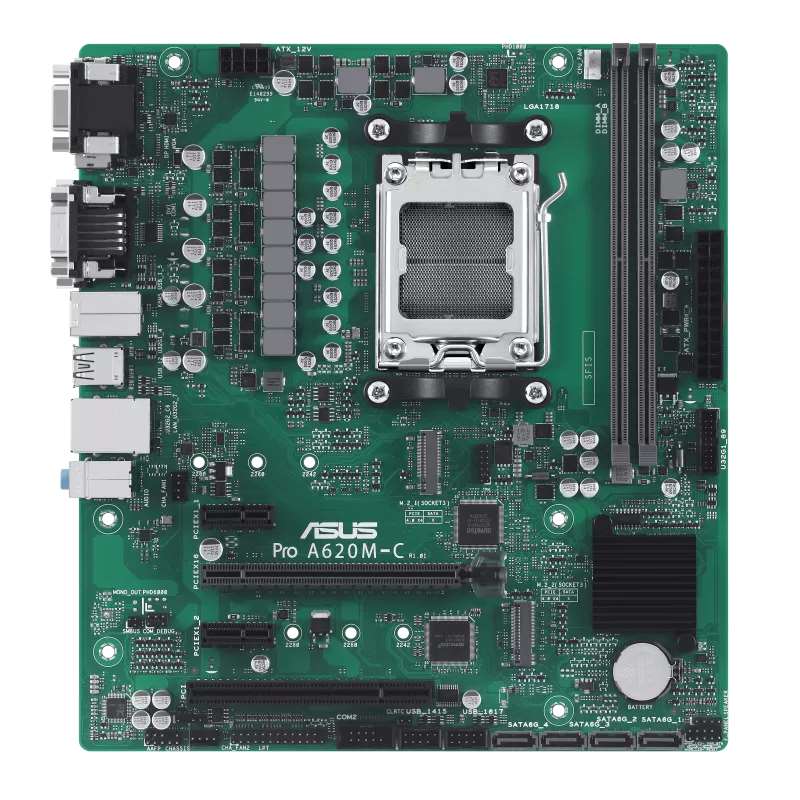

ASUS MB Sc AM5 Pro A620M-C-CSM, AMD A620, 2xDDR5, 1xHDMI, 1xDP, 1xVGA, 1xDVI-D, mATX

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Supports up to AMD 120W CPU
* Refer to www.asus.com for CPU support list.

Chipset

AMD A620 Chipset

Memory

2 x DIMM slots, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x VGA port
1 x DVI-D port
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD A620 Chipset
2 x PCIe 3.0 x1 slots
1 x PCI slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slot and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD A620 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

1 x Realtek 1Gb Ethernet
ASUS LANGuard

USB

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
1 x USB 3.2 Gen 1 (5G) port (1 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

"Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

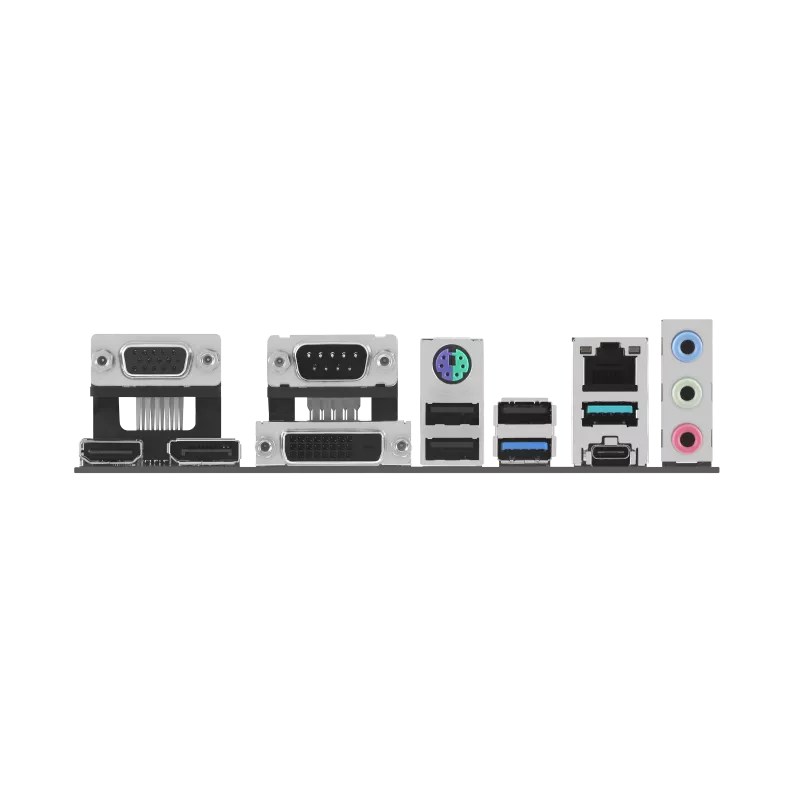

Back Panel I/O Ports

2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C®)
1 x USB 3.2 Gen 1 (5G) port (1 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x DisplayPort
1 x VGA port
1 x DVI-D port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
1 x COM port
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x SMBUS header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features

ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit*
- Anti-Moisture Coating
- 24/7 Reliability
- Overcurrent Protection
* Please contact local FAE for commercial BIOS kit.

Software Features

ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x M.2 Anchors
Documentation
1 x ACC Express Activation Key Card
1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

micro-ATX Form Factor
24.4 cm x 22.4 cm
