AC1200 Dual-Band Wi-Fi Access Point SPEED: 300 Mbps at 2.4 GHz + 867 Mbps at 5 GHz SPEC: 4× Fixed Antennas, 1× Gigabit P

TL-WA1201

Bezdrátový prístupový bod AC1200

AC1200 dvojpásmový Wi-Fi – 867 Mb/s pri frekvencii 5 GHz a 300 Mb/s pri frekvencii 2,4 GHz.

Flexibilné nasadenie – Podporuje pasívne PoE pre prenos elektrickej energie a súčasne.

Viac režimov – Podporuje režimy Access Point, Range Extender, Multi-SSID a Client tak, aby vyhovovaly všem potřebám sítí.

Technológia MU-MIMO – zároveň prináša dáta do viac zariadení s 2x rýchlejším výkonom

Zvýšené pokrytia – Štyri pevné antény vybavené technologie Beamforming rozširujú a koncentrujú Wi-Fi signály.

Kaptivní portál – Nabízím již navrženou stránku portálu pro zvýšení bezpečnosti a marketingu.



HARDWARE FEATURES

Interface 1× 10/100/1000 Mbps Ethernet Port

(Supports Passive PoE)

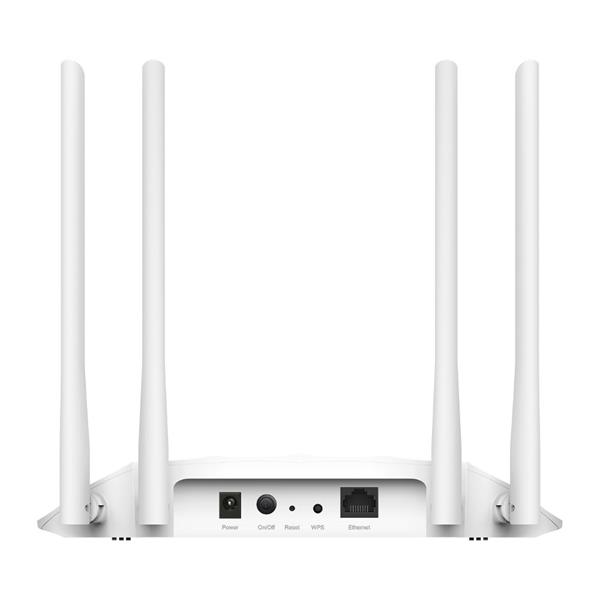

Button Power On/Off Button, WPS Button, Reset Button

External Power Supply 12V/1.5A

Wireless Standards IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz

Dimensions ( W x D x H ) 225×145.5×37 in (400×255×72 mm)

Antenna Type 4 Fixed High Performance Antennas

WIRELESS FEATURES

Frequency 2.4 GHz and 5 GHz

Signal Rate 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz

Reception Sensitivity 5 GHz:

11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm

11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm

11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm

11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm



2.4 GHz:

11g 54Mbps: -78 dBm

11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm

11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Transmit Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)

FCC: <30dBm(2.4GHz&5GHz)

Wireless Modes Access Point, Range Extender, Client, Multi-SSID

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control

Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

DHCP Server, DHCP Client List

Quality of Service WMM

Advanced Functions Captive Portal

OTHERS

Certification CE, FCC, RoHS

Package Contents Wireless Access Point TL-WA1201

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

PoE Power Injector

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,

10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Environment Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)

Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Protocol Support IPv4, IPv6
