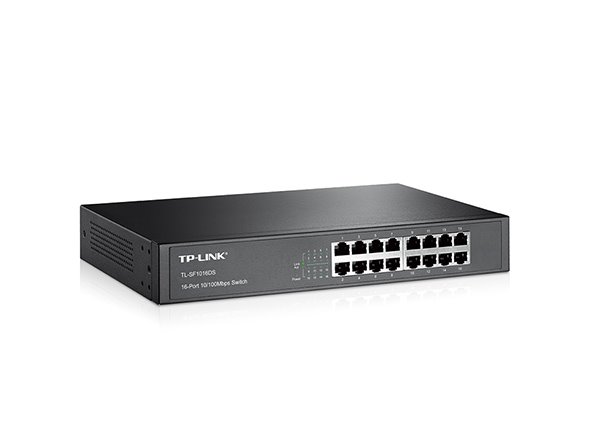

16-Port 10/100 Mbps Switch PORT: 16× 10/100 Mbps RJ45 Ports SPEC: 1U 13-inch Rack-mountable Steel Case FEATURE: Plug and

16portový switch 10/100 Mbit/s
TL-SF1016DS
16 portů 10/100 Mbit/s RJ45
Podporuje automatické učení adres MAC a Auto MDI/MDIX
Standardní 13"" ocelové pouzdro

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface 16 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 2.23W (220V/50Hz)
Dimensions ( W x D x H ) 11.6×7.1×1.7 in. (294×180×44 mm)
Mounting Rack Mountable
Max Power Consumption 2.06W(220V/50Hz)
Max Heat Dissipation 7.03BTU/h
PERFORMANCE
Switching Capacity 3.2Gbps
Packet Forwarding Rate 2.38Mpps
MAC Address Table 8K
Buffer Memory 2Mb
Green Technology Innovative energy-efficient technology saves power up to 75%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS

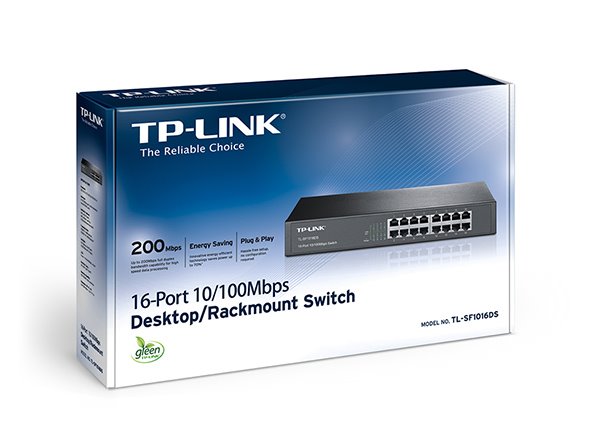

Package Contents 16-Port 10/100Mbps Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
